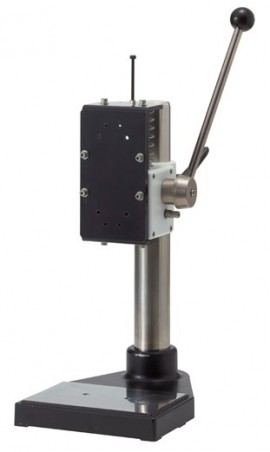

Provides quick and consistent testing, the vertical lever test stand with a distance meter is perfect for compression and tension applications where rapid action is desired. It has a rugged metal construction and has a maximum capacity of 220 lbf. This stand is designed to easily change from compression to tension mode.
Provides quick and consistent testing, the vertical lever test stand with a distance meter is perfect for compression and tension applications where rapid action is desired. It has a rugged metal construction and has a maximum capacity of 220 lbf. This stand is designed to easily change from compression to tension mode.
The vertical lever test stand has single column design that allows the base plate to be rotated.
Features
Applications
| Specifications | |
| Maximum Load | 220 lbf (100 kgf) |
| Stroke | 2.3" (60 mm) per 170° |
| Display | Push button for inch/mm, zero set and on/off |
| Resolution | 0.0005"/0.01 mm |
| Accuracy | 0.1% of reading or 0.005"/0.1 mm whichever is greater |
| Specifications | |
| Maximum Load | 220 lbf (100 kgf) |
| Stroke | 2.3" (60 mm) per 170° |
| Display | Push button for inch/mm, zero set and on/off |
| Resolution | 0.0005"/0.01 mm |
| Accuracy | 0.1% of reading or 0.005"/0.1 mm whichever is greater |
