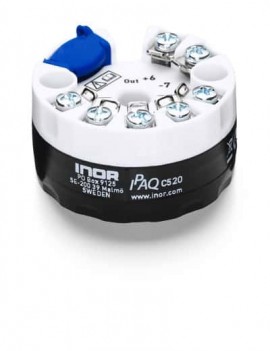

The IPAQ C520 transmitters are universal, isolated, dual-input temperature transmitters with additional voltage and resistance input. The IPAQ C520N is approved for Non-Incendive use in Ex-Zone 2. C520X/C520XS are Intrinsically Safe versions for use in Ex-Zone 0, 1 and 2. The transmitters are compatible with the HART 6 protocol. Typical characteristics are the high accuracy, stability and reliability combined with a robust housing.
The IPAQ C520 transmitters are universal, isolated, dual-input temperature transmitters with additional voltage and resistance input. The IPAQ C520N is approved for Non-Incendive use in Ex-Zone 2. C520X/C520XS are Intrinsically Safe versions for use in Ex-Zone 0, 1 and 2. The transmitters are compatible with the HART 6 protocol. Typical characteristics are the high accuracy, stability and reliability combined with a robust housing.
Features
| Type | Head-mounted |
| Input | RTD Thermocouple Universal |
| Input RTD | Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, Cu10 |
| Input Thermocouple | Type B, C, D, E, J, K, N, R, S, T |
| Type of Transmitter | Digital |
| Output | 4-20 mA, HART® |
| Isolation | Isolated |
| Measuring Channels | 2 channels |
| Input Connections | 2-, 3-, 4- wire connection |
| Power Supply | IPAQ C520/C520S: 10 to 36 VDC; IPAQ C520X/C520XS: 10 to 30 VDC |
| Approvals | ATEX, IECEx, SIL2 |
| Typical Accuracy | RTD: Max. of ±0.18°F (±0.1°C) or ±0.05% of span TC: Typical ±0.05 of span |
| Quick Delivery | Yes |
