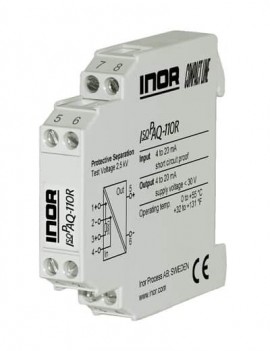

IsoPAQ-110R is a Transmitter Repeater for powering and isolation of a non-isolated 2-wire transmitter. Thanks to the isolation, the 4-20 mA transmitter signal can be connected to a grounded input circuit of a control system without risk for measurement errors due to ground loops. The Transmitter Repeater needs no power supply, which contributes to reduced installation costs. The high reliability ensures a safe system operation and low maintenance costs.
IsoPAQ-110R is a Transmitter Repeater for powering and isolation of a non-isolated 2-wire transmitter. Thanks to the isolation, the 4-20 mA transmitter signal can be connected to a grounded input circuit of a control system without risk for measurement errors due to ground loops. The Transmitter Repeater needs no power supply, which contributes to reduced installation costs. The high reliability ensures a safe system operation and low maintenance costs.
Features
| Type of Input | Active |
| No. of Channels | 1 channel |
| Input Signal | 4 to 20 mA |
| Output Signal | 4 to 20 mA |
| Configuration | Fixed range |
| Typical Accuracy | 0.1% FS |
| Isolation Level | 2.5 kV, 50 Hz |
| Working Voltage | 600 VAC/DC |
| Power Supply | 15 to 30 VDC |
| Protective Separation | Yes |
| Response Time | < 10 ms |
| Ambient Temperature | 32 to 131°F (0 to 55°C) |
| Housing Width | 0.44" (11.2 mm) |
| Installation Depth | 2.36" (60 mm) |
