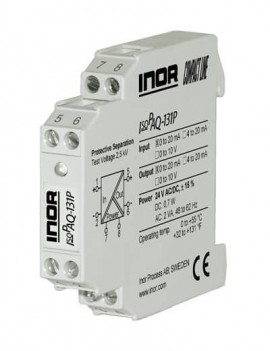

The Isolation Transmitter IsoPAQ-131P is used for isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals. For applications where normally one signal combination only is used, IsoPAQ-131P offers a cost-effective alternative. The high reliability and the Protective Separation are further features, which ensure a safe system operation.
The Isolation Transmitter IsoPAQ-131P is used for isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals. For applications where normally one signal combination only is used, IsoPAQ-131P offers a cost-effective alternative. The high reliability and the Protective Separation are further features, which ensure a safe system operation.
Features
| Type of Input | Active |
| No. of Channels | 1 channel |
| Input Signal | 0 to 20 mA 4 to 20 mA 0 to 10 V |
| Output Signal | 0 to 20 mA 4 to 20 mA 0 to 10 V |
| Configuration | Fixed ranges |
| Typical Accuracy | 0.2% FS |
| Isolation Level | 2.5 kV, 50 Hz |
| Working Voltage | 600 VAC/DC |
| Power Supply | 24 VAC/DC |
| Protective Separation | Yes |
| Response Time | < 5 ms |
| Ambient Temperature | 32 to 131°F (0 to 55°C) |
| Housing Width | 0.44" (11.2 mm) |
| Installation Depth | 2.36" (60 mm) |
