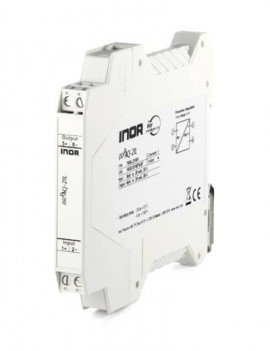

IsoPAQ-21L is a 1-channel loop powered isolator used for electrical isolation of 0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.
IsoPAQ-21L is a 1-channel loop powered isolator used for electrical isolation of 0(4)-20 mA signals to avoid measurement errors due to different voltage potentials or ground loops in an instrument installation.
Features
| Type of Input | Passive |
| No. of Channels | 1 channel |
| Input Signal | 0(4) to 20 mA |
| Output Signal | 0(4) to 20 mA |
| Typical Accuracy | 0.1% FS |
| Isolation Level | 4 kV, 50 Hz |
| Working Voltage | 600 VAC/DC |
| Power Supply | No |
| Protective Separation | Yes |
| Response Time | < 5 ms |
| Ambient Temperature | 68 to 158°F (20 to 70°C) |
| Plug-In Screw Terminals | Yes |
| Housing Width | 0.49" (12.5 mm) |
| Installation Depth | 4.09" (104 mm) |
| Type of Input | Passive |
| No. of Channels | 1 channel |
| Input Signal | 0(4) to 20 mA |
| Output Signal | 0(4) to 20 mA |
| Typical Accuracy | 0.1% FS |
| Isolation Level | 4 kV, 50 Hz |
| Working Voltage | 600 VAC/DC |
| Power Supply | No |
| Protective Separation | Yes |
| Response Time | < 5 ms |
| Ambient Temperature | 68 to 158°F (20 to 70°C) |
| Plug-In Screw Terminals | Yes |
| Housing Width | 0.49" (12.5 mm) |
| Installation Depth | 4.09" (104 mm) |
