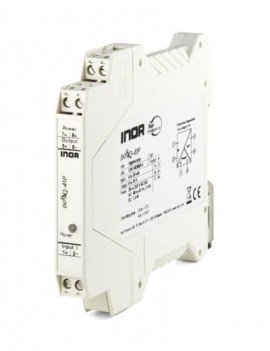

The Isolation Transmitter IsoPAQ-41P is used for high-precision isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals. For applications where normally only one signal combination is used, IsoPAQ-41P offers a cost-effective alternative. The high reliability and the Protective Separation are additional features that ensure a safe system operation.
The Isolation Transmitter IsoPAQ-41P is used for high-precision isolation and conversion of 0-20 mA, 4-20 mA and 0-10 V unipolar signals. For applications where normally only one signal combination is used, IsoPAQ-41P offers a cost-effective alternative. The high reliability and the Protective Separation are additional features that ensure a safe system operation.
Features
| Type of Input | Active |
| No. of Channels | 1 channel |
| Input Signal | 0 to 20 mA 4 to 20 mA 0 to 10 V |
| Output Signal | 0 to 20 mA 4 to 20 mA 0 to 10 V |
| Configuration | Fixed ranges |
| Typical Accuracy | 0.1% FS |
| Isolation Level | 4 kV, 50 Hz |
| Working Voltage | 600 VAC/DC |
| Power Supply | 20 to 253 VAC/DC |
| Protective Separation | Yes |
| Cut-Off Frequency (-3 dB) | > 1 kHz |
| Ambient Temperature | 68 to 158°F (20 to 70°C) |
| Plug-In Screw Terminals | Yes |
| Housing Width | 0.49" (12.5 mm) |
| Installation Depth | 4.09" (104 mm) |
