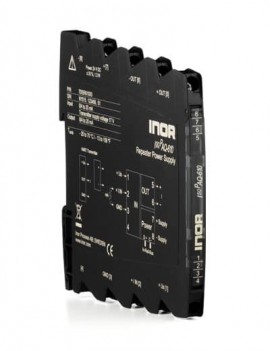

The Repeater Power Supply IsoPAQ-610 is used to supply and separate 2- and 3-wire SMART Transmitters and active sensor signals with HART communication.
The Repeater Power Supply IsoPAQ-610 is used to supply and separate 2- and 3-wire SMART Transmitters and active sensor signals with HART communication.
Features
| Input | |
| Input Signal | 0/4 to 20 mA (4 to 20 mA with HART signal) |
| Input Resistance | 50 Ω |
| Over Load | 50 mA / 30 V |
| Transmitter Supply (tx) | 16 V (open circuit voltage/short circuit current < 22 V/35 mA) |
| Communication Signal | Bidirectional HART transmission, internal AC impedance 250 Ω |
| Output | |
| Output Signal | 0/4 to 20 mA (4 to 20 mA with HART signal) |
| Load | ≤ 12 V (600 Ω at 20 mA) |
| Linear Transmission Range | -1 to 110% |
| Residual Ripple | < 10 mVrms |
| General Data | |
| Transmission Error | < 0.1% full scale |
| Temperature Coefficient1) | < 100 ppm/K |
| Cut-Off Frequency -3 dB | 100 Hz, >2.5 kHz HART-signal |
| Response Time T99 | 7 ms |
| Test Voltage | 3 kVAC, 50 Hz, 1 min. Input against output against power supply |
| Working Voltage (basic Insulation) | 600 VAC/DC for overvoltage category II and contamination class 2 acc. to EN 61010-1 |
| Protection Against Dangerous Body Currents | Protective Separation by reinforced insulation acc. to EN 61010-1 up to 300 VAC/DC for overvoltage category II and contamination class 2 between input and output and power supply. |
| Ambient Temperature | Operation: -13 to 158°F (-25 to 70°C) Transport and storage: -40 to 185°F (-40 to 85°C) |
| Power Supply | 24 VDC 16.8 to 31.2 VDC, approx. 1.3 W |
| EMC | EN 61326-1 |
| Construction | 2.44 x 3.8 x 4.21" (62 x 96.5 x 107 mm) , skyddsklass IP 20, monteras på 1.38" (35 mm) skena enl. EN 60715 |
| Weight | Approx. 2.47 oz (70 g) |
| Input | |
| Input Signal | 0/4 to 20 mA (4 to 20 mA with HART signal) |
| Input Resistance | 50 Ω |
| Over Load | 50 mA / 30 V |
| Transmitter Supply (tx) | 16 V (open circuit voltage/short circuit current < 22 V/35 mA) |
| Communication Signal | Bidirectional HART transmission, internal AC impedance 250 Ω |
| Output | |
| Output Signal | 0/4 to 20 mA (4 to 20 mA with HART signal) |
| Load | ≤ 12 V (600 Ω at 20 mA) |
| Linear Transmission Range | -1 to 110% |
| Residual Ripple | < 10 mVrms |
| General Data | |
| Transmission Error | < 0.1% full scale |
| Temperature Coefficient1) | < 100 ppm/K |
| Cut-Off Frequency -3 dB | 100 Hz, >2.5 kHz HART-signal |
| Response Time T99 | 7 ms |
| Test Voltage | 3 kVAC, 50 Hz, 1 min. Input against output against power supply |
| Working Voltage (basic Insulation) | 600 VAC/DC for overvoltage category II and contamination class 2 acc. to EN 61010-1 |
| Protection Against Dangerous Body Currents | Protective Separation by reinforced insulation acc. to EN 61010-1 up to 300 VAC/DC for overvoltage category II and contamination class 2 between input and output and power supply. |
| Ambient Temperature | Operation: -13 to 158°F (-25 to 70°C) Transport and storage: -40 to 185°F (-40 to 85°C) |
| Power Supply | 24 VDC 16.8 to 31.2 VDC, approx. 1.3 W |
| EMC | EN 61326-1 |
| Construction | 2.44 x 3.8 x 4.21" (62 x 96.5 x 107 mm) , skyddsklass IP 20, monteras på 1.38" (35 mm) skena enl. EN 60715 |
| Weight | Approx. 2.47 oz (70 g) |
