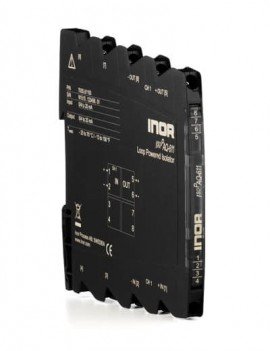

The input loop-powered isolator IsoPAQ-611 provides galvanic separation for 0(4) … 20 mA standard signals, while transferring the measurement signal to the output with a high degree of accuracy.
The input loop-powered isolator IsoPAQ-611 provides galvanic separation for 0(4) … 20 mA standard signals, while transferring the measurement signal to the output with a high degree of accuracy.
Features
| Input | |
| Input Signal | 0(4)-20 mA |
| Start-Up Current | < 200 mA |
| Voltage Drop | Approx. 2.3 V at 20 mA |
| Overload | ≤ 50 mA, 30 V |
| Output | |
| Output Signal | 0(4)-20 mA |
| Load | 600 Ω |
| Response Time T99 | 5 ms |
| Residual Ripple | < 10 mVrms |
| General Data | |
| Transmission Error | < 0.1% full scale |
| Load Error | < 0.05% of measured value / 100 Ω load |
| Temperature Coefficient | < 100 ppm/K |
| Test Voltage | 3 kVAC, 50 Hz, 1 min. all circuits against one another |
| Working Voltage (basic Insulation) | 600 VAC/DC for overvoltage category II and pollution degree 2 acc. to EN 61010-1 |
| Protection Against Electrical Shock | Protective separation according to EN 61140 by reinforced insulation in accordance with EN 61010-1 up to 300 VAC/DC for overvoltage category II and pollution degree 2 between all circuits. |
| Ambient Temperature | Operation: -13 to 158°F (-25 to 70°C) Transport and storage: -40 to 185°F (-40 to 85°C) |
| EMC | EN 61326-1 |
| Construction | Protection class IP 20 Mounting on 1.38" (35 mm) DIN rail acc. to EN 60715 |
| Dimensions | 2.44 x 3.8 x 4.21" (62 x 96.5 x 107 mm) |
| Weight | Approx. 2.47 oz (70 g) |
