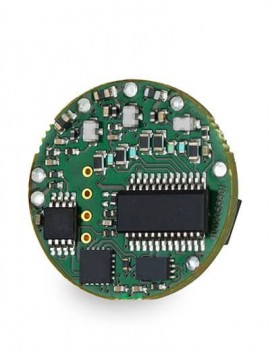

OEM202R is a digital temperature transmitter for integration into temperature sensors, systems or machines, for converting a low-signal level output to an amplified signal. OEM202R is compatible with both Pt100 and Pt1000, as well as 2-, 3- and 4-wire connections. The great connectivity options combined with the compact design makes it suitable for most types of applications and sensors.
OEM202R is a digital temperature transmitter for integration into temperature sensors, systems or machines, for converting a low-signal level output to an amplified signal. OEM202R is compatible with both Pt100 and Pt1000, as well as 2-, 3- and 4-wire connections. The great connectivity options combined with the compact design makes it suitable for most types of applications and sensors.
| Output | 4 to 20 mA, temperature linear |
| Sensor Element | Pt100, Pt1000 |
| Connection | 2-, 3- and 4-wire |
| Maximum Sensor Wire Resistance | 3- and 4-wire connection - 20 ohm/wire 2-wire connection - max 40 ohm in total |
| Measuring Range | -328 to 1562°F (-200 to 850°C) |
| Minimum Span | 36°F (20°C) |
| Sensor Break Detection | Upscale / Downscale alarm |
| Sensor Short Detection | Upscale / Downscale alarm |
| Basic Accuracy (PCBA) | Max. of ±0.18°F (±0.1°C) or ±0.1% of span* |
| Temperature Drift (PCBA) | Max of ±0.02°F (±0.01°C)/°C or ±0.01%/°C of span |
| Long-Term Stability | Max of ±0.45°F (±0.25°C) or ±0.25% of span / 5 year |
| Ambient Temperature | Operating: -40 to 185°F (-40 to 85°C) Storage: -58 to 212°F (-50 to 100°C) |
| Humidity | 0 to 98% RH (non- condensing) |
| Power Supply | 5 to 32 VDC |
| Vibration | Acc. to IEC60068-2-6, test Fc, 10-2000 Hz, 10g |
| Uncertainty | 2.1uA |
| EMC | Acc. to IEC61326-1 |
