Use this circulator to control the temperature of demanding internal and external applications. The unit offers a wide working temperature range of -31 to 392°F (-35 to 200°C).
Use this circulator to control the temperature of demanding internal and external applications. The unit offers a wide working temperature range of -31 to 392°F (-35 to 200°C).
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

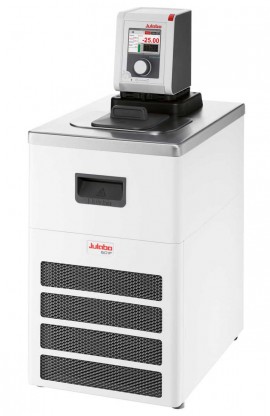

With this Julabo DD-601F DYNEO Refrigerated/Heating Circulator, you can control the temperature of demanding internal and external applications. The circulator offers a working temperature range of -31 to 392°F (-35 to 200°C), while also delivering a flow rate of 22 L/min and 0.6 bar of pressure. The circulator is equipped with USB and Pt100 connections.
Features
| Working Temperature Range | -31 to 392°F (-35 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.07/0.19/0.33/0.5/0.54/0.6 kW (-30/-20/-10/0/10/20 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.9 x 8.7" (14.99 x 22.1 cm) |
| Bath Depth | 7.9" (20.07 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 8 to 10 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 18.1" (45.97 cm) |
| Product Width | 14.2" (36.07 cm) |
| Product Height | 29.1" (73.91 cm) |
| Product Weight | 84.2 lbs (38.19 kg) |
| Working Temperature Range | -31 to 392°F (-35 to 200°C) |
| Display | 3.5" (8.89 cm) TFT |
| Heating Capacity | 1 kW |
| Cooling Capacity | Medium Ethanol: 0.07/0.19/0.33/0.5/0.54/0.6 kW (-30/-20/-10/0/10/20 to 200°C) |
| Pump Capacity Flow Rate | 8 to 23 L/min |
| Pump Capacity Flow Pressure | 1.5 to 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Connection | M16x1, USB, 8" (12 mm) barbed fittings |
| Material | Bath Tank: stainless steel |
| Bath Opening | 5.9 x 8.7" (14.99 x 22.1 cm) |
| Bath Depth | 7.9" (20.07 cm) |
| Cooling of Compressor | Air |
| Filling Volume | 8 to 10 L |
| Temperature Control | PID |
| Temperature Stability | ±0.01°C |
| Product Length | 18.1" (45.97 cm) |
| Product Width | 14.2" (36.07 cm) |
| Product Height | 29.1" (73.91 cm) |
| Product Weight | 84.2 lbs (38.19 kg) |
