This circulator is designed with a compact cooling coil and infinitely adjustable pressure pump. The 3.5in (8.89cm) TFT display with a multilingual interface makes it easy to identify the necessary data.
This circulator is designed with a compact cooling coil and infinitely adjustable pressure pump. The 3.5in (8.89cm) TFT display with a multilingual interface makes it easy to identify the necessary data.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

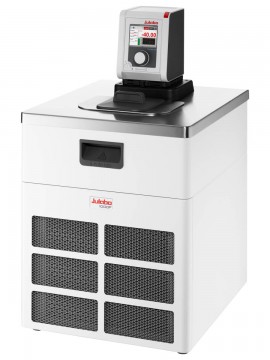

Use the Julabo DYNEO DD-1000F Refrigerated/Heating Circulator for routine temperature applications in the laboratory or other environment. It boasts an adjustable pressure pump and a large, easy-to-read multilingual TFT color display. The cooling coil is designed to free up space in the bath tank, while the integrated draining system makes emptying liquids a fast and simple process.
Features
| Temperature Range | -58 to 392°F (-50 to 200°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.13 to 1 |
| Cooling Capacity | -40 to 68°F (-40 to 20°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.98 gal (7.5 L) |
| Compatible Refrigerant | R452A |
| Carbon Dioxide Equivalent (t) | 0.375 |
| Interfaces | RS-232, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 19.3" (49.02 cm) |
| Product Width | 16.5" (41.91 cm) |
| Product Height | 27.6" (70.1 cm) |
| Product Weight | 112.9 lbs (51.21 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
