This 115V/60Hz circulator is designed for both internal and external use. It features an adjustable pressure pump, a compact cooling coil and a 3.5in (8.89cm) TFT display.
This 115V/60Hz circulator is designed for both internal and external use. It features an adjustable pressure pump, a compact cooling coil and a 3.5in (8.89cm) TFT display.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

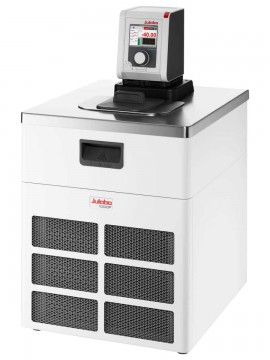

The Julabo DYNEO DD-1000F Refrigerated/Heating Circulator is designed for internal and external temperature control applications. It features a cooling coil that frees up space in the bath tank and a pressure pump that can be adjusted to suit your needs. The circulator also boasts an analog interface and a USB port for enhanced connectivity options.
Features
| Temperature Range | -58 to 392°F (-50 to 200°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.13 to 1 |
| Cooling Capacity | -40 to 68°F (-40 to 20°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 7.8 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.98 gal (7.5 L) |
| Compatible Refrigerant | R452A |
| Carbon Dioxide Equivalent (t) | 0.375 |
| Interfaces | Analog, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 19.3" (49.02 cm) |
| Product Width | 16.5" (41.91 cm) |
| Product Height | 27.6" (70.1 cm) |
| Product Weight | 112.9 lbs (51.21 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
