This refrigerated/heating circulator features a stainless steel tank, an adjustable pump connection and a compact cooling coil. The 3.5in (8.89cm) TFT display offers a clear view of the information you need.
This refrigerated/heating circulator features a stainless steel tank, an adjustable pump connection and a compact cooling coil. The 3.5in (8.89cm) TFT display offers a clear view of the information you need.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

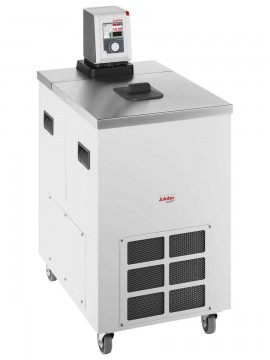

The Julabo DYNEO DD-1001F Refrigerated/Heating Circulator features an infinitely adjustable pump that delivers a 5.8 GPM (22 LP m) pump capacity at a pressure of 0.6 bar. Suitable for internal and external applications, this circulator is also designed with a compact cooling coil and a central rotary knob for straightforward operation. The 3.5" (8.89 cm) multilingual TFT display helps you identify and collect your data.
Features
| Temperature Range | -36.4 to 212°F (-38 to 100°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.12 to 1 |
| Cooling Capacity | -22 to 68°F (-30 to 20°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 7.8 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 14.79 gal (56 L) |
| Compatible Refrigerant | R452A |
| Carbon Dioxide Equivalent (t) | 0.364 |
| Interfaces | Analog, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 25.2" (64.01 cm) |
| Product Width | 17.7" (44.96 cm) |
| Product Height | 37.4" (95 cm) |
| Product Weight | 84.2 lbs (38.19 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
| Temperature Range | -36.4 to 212°F (-38 to 100°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.12 to 1 |
| Cooling Capacity | -22 to 68°F (-30 to 20°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 7.8 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 14.79 gal (56 L) |
| Compatible Refrigerant | R452A |
| Carbon Dioxide Equivalent (t) | 0.364 |
| Interfaces | Analog, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 25.2" (64.01 cm) |
| Product Width | 17.7" (44.96 cm) |
| Product Height | 37.4" (95 cm) |
| Product Weight | 84.2 lbs (38.19 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
