This refrigerated/heating circulator is designed for both internal and external temperature applications. It features an adjustable pressure pump and an integrated drain system.
This refrigerated/heating circulator is designed for both internal and external temperature applications. It features an adjustable pressure pump and an integrated drain system.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

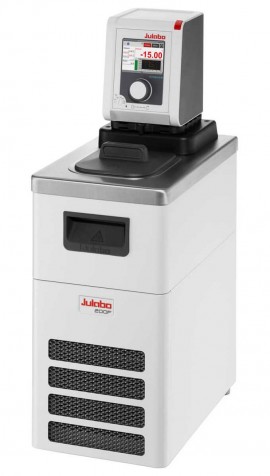

The Julabo DYNEO DD-200F Refrigerator/Heating Circulator is suitable for both internal and external temperature control applications. The 3.5" (8.89 cm) color TFT display makes it easy to navigate the multilingual interface and access the information you need to conduct your research. The pressure pump can be adjusted to suit your needs while the central controller offers simplified operation. The circulator also boasts a working temperature range of -4 to 392°F (-20 to 200°C).
Features
| Temperature Range | -4 to 392°F (-20 to 200°C) |
| Temperature Control Type | PID |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Cooling Capacity (kW) | 0.02 to 0.2 |
| Cooling Capacity | -4 to 392°F (-20 to 200°C) |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.06 gal (4 L) |
| Compatible Refrigerant | R134a |
| Carbon Dioxide Equivalent (t) | 0.1 |
| Interfaces | USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 15.4" (39.12 cm) |
| Product Width | 9.1" (23.11 cm) |
| Product Height | 25.6" (65.02 cm) |
| Product Weight | 56.7 lbs (25.72 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
