This weather meter offers firefighters all the environmental data they need to make informed decisions. It features a compass, PIG, FDFM and many other environmental measurements, and can be used hand-held or mounted on a tripod. LiNK wireless connectivity allows you to view and share readings and graphs remotely on your mobile device or PC, as well as export the entire data log quickly and easily.
This weather meter offers firefighters all the environmental data they need to make informed decisions. It features a compass, PIG, FDFM and many other environmental measurements, and can be used hand-held or mounted on a tripod. LiNK wireless connectivity allows you to view and share readings and graphs remotely on your mobile device or PC, as well as export the entire data log quickly and easily.

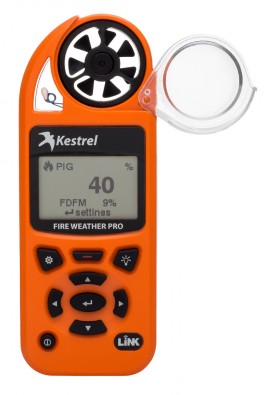

The fast and easy tool for taking weather observations The Kestrel 5500 Fire Weather Meter Pro provides NIST-traceable accuracy, reliability and usability when it matters most. Measure every environmental condition plus PIG and FDFM and view trends with on-screen data graphing. Drop-proof, dust-proof, waterproof and able to withstand extreme environments without damage, your Kestrel Fire Weather meter can stand up to the abuses of work on a fire line wherever you're assigned. The Kestrel 5500 Fire Weather Meter Pro offers a large, high-resolution and contrast display and highly readable numerals.
In addition to measuring the current environmental conditions, the Kestrel 5500 FWM tracks and logs over 10,000 sets of time-stamped data, providing a complete history of conditions on the fire from the moment you arrive. With optional LiNK wireless connectivity, your data log can be transferred to a Kestrel LiNK app (available on Android) for easy export and email to an FBAN or meteorologist. Data can also be downloaded to a PC with either the accessory Kestrel LiNK Dongle or waterproof USB Data Transfer Cable The Kestrel 5500 also includes a built-in dual color backlight, extra-strong polycarbonate lens and single AA battery operation.
This meter measures: Altitude, Barometric Pressure, Crosswind, Density Altitude, Dew Point, Dew Point Temperature, Wind Direction and Orientation, Fine Dead Fuel Moisture, Headwind/Tailwind, Heat Stress Index, Pressure Trend, Probability of Ignition, Relative Humidity, Station Pressure (Absolute Pressure) Temperature, Wet Bulb Temperature (Psychrometer), Wind Chill and Wind Speed.
Features
Log, View and Share on the Kestrel LiNK App
Kestrel LiNK is the free app that powers the Fire Weather DROP data logger. With Kestrel LiNK on your smart phone or tablet, you can view real-time readings from any DROP logger within wireless range (up to 100' or more line of sight) via Bluetooth low energy. Min/Max/Average readings are clearly displayed and the data log is viewable as a scrolling graph with detailed data for each logged point. The Kestrel LiNK app also allows adjustment of the logging interval and other settings as well as real-time threshold alerts. Readings can be updated as frequently as every 2 seconds and logging time and date are automatically updated whenever connected to your smart device. You can also send and share real-time and logged environmental data via email, Facebook or Twitter.
Applications
| Accuracy | Larger of 3% of reading, least significant digit or 20ft/min |
| Resolution | 0.1m/s, 1ft/min, 0.1km/h, 0.1mph, 0.1 knots, 1B, 0.1F/S |
| Range | 0.6 to 40.0m/s,118 to 7,874ft/min,2.2 to 144.0km/h,1.3 to 89.5mph,1.2 to 77.8 knots.0 to 12 B,2-131.2 |
| Accuracy | 0.9°F (0.5°C) |
| Resolution | 0.1°F (0.1°C) |
| Range | -20 to 158°F (-29 to 70°C) |
| Accuracy | ±2%RH |
| Resolution | 0.1%RH |
| Range | 10 to 90% 25°C non-condensing |
| Accuracy | ±1.5 mbar at 25°C, 700-1100 mbar/ ±0.044inHg at 77°F 20.67- 32.48 inHg/ ±0.022 PSI 10.15-15.95 PSI |
| Resolution | 0.01 inHg, 0.1 hPa|mbar, 0.01 PSI |
| Range | 25°C/77°F, 700-1100 mbar/20.67-32.48 inHg/10.15-15.95 PSI |
| Accuracy | ±5° |
| Resolution | 1°, 1/16th Cardinal Scale |
| Range | 0 to 360° |
Click on a category to view a selection of compatible accessories with the Kestrel 5500FWL Fire Weather Meter PRO with LiNK, safety orange.
| Accuracy | Larger of 3% of reading, least significant digit or 20ft/min |
| Resolution | 0.1m/s, 1ft/min, 0.1km/h, 0.1mph, 0.1 knots, 1B, 0.1F/S |
| Range | 0.6 to 40.0m/s,118 to 7,874ft/min,2.2 to 144.0km/h,1.3 to 89.5mph,1.2 to 77.8 knots.0 to 12 B,2-131.2 |
| Accuracy | 0.9°F (0.5°C) |
| Resolution | 0.1°F (0.1°C) |
| Range | -20 to 158°F (-29 to 70°C) |
| Accuracy | ±2%RH |
| Resolution | 0.1%RH |
| Range | 10 to 90% 25°C non-condensing |
| Accuracy | ±1.5 mbar at 25°C, 700-1100 mbar/ ±0.044inHg at 77°F 20.67- 32.48 inHg/ ±0.022 PSI 10.15-15.95 PSI |
| Resolution | 0.01 inHg, 0.1 hPa|mbar, 0.01 PSI |
| Range | 25°C/77°F, 700-1100 mbar/20.67-32.48 inHg/10.15-15.95 PSI |
| Accuracy | ±5° |
| Resolution | 1°, 1/16th Cardinal Scale |
| Range | 0 to 360° |
