Compact with an integrated magnetic mount and an additional ceiling clip mount, this laser level offers optimal performance. Featuring alignment with clear, bright laser level lines and a 90° vertical plumb spot, this level projects horizontal and vertical lines independently or together to address various alignment tasks.
Compact with an integrated magnetic mount and an additional ceiling clip mount, this laser level offers optimal performance. Featuring alignment with clear, bright laser level lines and a 90° vertical plumb spot, this level projects horizontal and vertical lines independently or together to address various alignment tasks.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Laser Levels category for similar products.
Or let's do a search and help you find what you need:

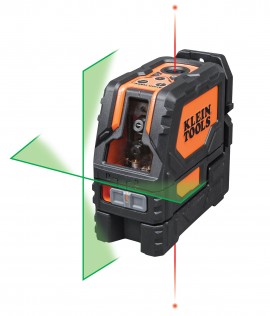

The Klein Tools Self-Leveling Green Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals. This level provides a reliable pendulum self-leveling system with clear, bright laser level lines, and a 90-degree vertical plumb spot feature. Equipped with an integrated magnetic mount and an additional ceiling clip mount, Klein’s cross-line level enables a multitude of alignment and layout applications.
Features
| Indoor Range | — |
| Plumb Laser | Yes |
| Overall Length | 5.3" (13.5 cm) |
| Transit Locking Mechanism | Yes |
| Maximum Distance | 70' (21 m) |
| Material | ABS Housing and Electronic Components |
| Receiver | — |
| Batteries | 3 x AA |
| Bag or Case | Hard Carrying Case |
| Overall Height | 5" (12.7 cm) |
| Included | Hard Carrying Case, Instruction Manual, Mounting Clamp, 3 x AA 1.5V Alkaline Batteries |
| Outdoor Range | 65' (20 m) |
| Overall Width | 2.6" (6.6 cm) |
| Laser Safety | ≤1mW Each Beam, Class 2 Laser Product |
| Type | Laser |
| Magnet Type | Permanent Rare Earth |
| Laser Wavelength | 515-530 nm (Cross-Lines), 630-680 nm (Plum Spots) |
| Special Features | Integrated Magnetic 360° Mounting Bracket with 1/4" and 5/8" Tripod Mounting Threads; Mounting Clamp Attachment; Excessive Tilt Indicator |
| Accuracy | ±3/32" per 33' (±2 mm per 10 m) Vertical & Horizontal Beams, ±1/8" per 33' (±3 mm per 10 m) Plumb Up Spot, ±5/32" per 33' (±4 mm per 10 m) Plumb Down Spot |
| Standard | EN61326-1, EN60825-1, 21 CFR 1040.10 and 1040.11 |
| Number of Beams | Four Horizontal, Vertical, Plumb Up, Plumb Down |
| Application | Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines, and/or Plumb Spots |
| Ingress Protection | IP54: Water and Dust Resistant |
| Low Battery Indicator | Yes |
| Weight | 1.5 lb (0.7 kg) |
