The electrical tester features an easy-to-read backlit display for low lighting. The double-insulated electrical housing protects against accidents.
The electrical tester features an easy-to-read backlit display for low lighting. The double-insulated electrical housing protects against accidents.

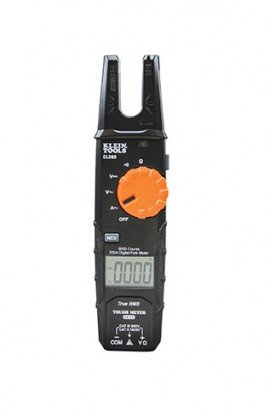

The CL360 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital open jaw fork meter that measures AC current via the fork, AC/DC voltage, continuity, and resistance via test leads. It can detect the presence of voltage via the integrated non-contact voltage (NCV) tester. It includes a carrying case, test leads and 2 x AAA batteries.
Features
Type | Open Jaw Fork Current Meter |
Included | Carrying Case, Instruction Manual, Straight Input Test Leads, and 2 x 1.5V AAA Batteries |
Current | 200A AC |
DC Micro-Amp | — |
Material | Plastic/Electronics |
Batteries | 2 x AAA |
Capacitance | — |
Voltage | 600V AC, 1000V DC |
Overall Length | 8.39" (21.3 cm) |
Functions | AC Current, AC/DC Voltage, Continuity, Resistance |
Temperature Range | — |
Display | 6000 Count LCD |
Standard | Jaw and Housing: CATIV 600V/CATIII 1000V; Electrical: CATIII 600V/CATII 1000V |
Special Features | Low Battery Indicator, Built-in Test Lead Holders, Backlit Display |
DC Polarity Indicator | Yes |
Frequency | — |
Jaw Size | 0.58" (1.5 cm) Opening |
Ingress Protection | IP40 |
AC Voltage | 600V |
DC Voltage | 1000V |
Auto-Power Off | Y |
Overall Height | 1.38" (3.5 cm) |
Overall Width | 2.12" (5.4 cm) |
Drop Protection | 9.9' (3m) |
Weight | 6.40 oz (180.0g) |
