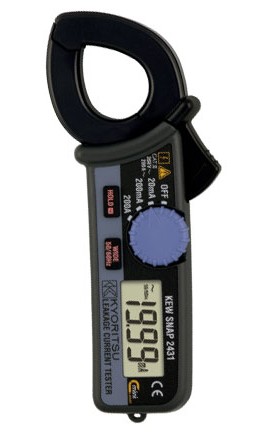

Kyoritsu 2431 Leakage Clamp Meter

Model: 2431 | Order No: KEW2431

Kyoritsu 2431 Leakage Clamp Meter-

Downloads:

More Kyoritsu Products

Ask an Expert

Kyoritsu 2431 Leakage Clamp Meter

Model: 2431 | Order No: KEW2431

This compact, leakage clamp meter fits perfectly in the palm of your hand and measures from 0.01mA to 199.9A AC.

This compact, leakage clamp meter fits perfectly in the palm of your hand and measures from 0.01mA to 199.9A AC.

Sale Price $413.60 USD
Regular Price $470.00 USD
Availability 2 to 3 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your KEW2431 Leakage Clamp Meter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your KEW2431 Leakage Clamp Meter

Kyoritsu 2431 Offers

Features

  • Measures from 0.01mA to 199.9A AC
  • Tear drop shaped jaws for easy use in tight places and crowded cable areas
  • Data hold function to allow for easy readings in dimly illuminated or hard-to-reach areas
  • Auto power-off function to conserve battery power
  • Rotary switch for easy one finger power on and range selection
  • Frequency Selector Switch to eliminate the effect of harmonics
  • Three AC current ranges: 20mA/200mA/200A

Kyoritsu 2431 Specifications

AC A (50/60Hz)
20/200mA/200A 20/200mA/100A: ±3%rdg±5dgt
200A: ±5%rdg±5dgt
AC A (WIDE)
20/200mA/200A 20/200mA/100A: ±2%rdg±4dgt at 50/60Hz
20/200mA/100A: ±5%rdg±6dgt at 40 to 400Hz
200A: ±5%rdg±4dgt at 50/60Hz
General Specifications
Conductor Size Ø24mm max.
Safety Standards IEC 61010-1 CAT.III 300V
IEC 61010-2-032
Effect of External Stray Magnetic Field Ø15mm 100A: 10mA AC max.
Frequency Response 40 to 400Hz
Withstand Voltage 3700V AC for 1 minute
Power Source 2 x 1.5V LR-44 Batteries
Dimensions 149 x 60 x 26 mm
Weight Approx. 120 g
Click here for complete specifications on the Kyoritsu 2431

What's included with the Kyoritsu 2431

  • Clamp Meter
  • Carrying Case
  • 2 x 1.5V LR-44
  • Instruction Manual
