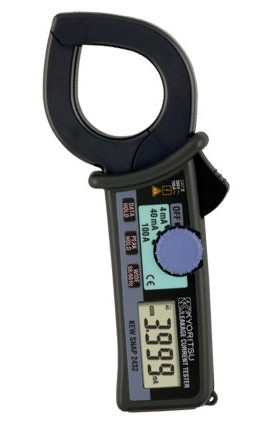

High sensitive model with frequency selector switch to eliminate the effect of harmonics.
High sensitive model with frequency selector switch to eliminate the effect of harmonics.
Features
| AC | |
| Measuring Ranges | 4mA: 0 to 3.999mA 40mA: 0 to 39.99mA 100A: 0 to 100.0A |
| Accuracy | |
| 4mA/40mA | 50/60Hz: ±1.0%rdg ±5dgt 40Hz to 1kHz: ±2.5%rdg ±5dgt |
| 100A | 0 to 80.0A 50/60Hz: ±1.0%rdg ±5dgt 40Hz to 1kHz: ±2.5%rdg ±5dgt 80.1 to 100.0A 50/60Hz: ±5%rdg 40Hz to 1kHz: ±10%rdg |
| General Specifications | |
| Measurement Time | Approx. 40 hours |
| Conductor Size | Approx. Ø40mm |
| Current Consumption | Approx. 13mA |
| Withstand Voltage | 3700VACrms (50/60Hz) for 1 minute between metal part of transformer jaws and housing case |
| Response Time | Approx. 2 seconds |
| Power Source | 2 x 1.5V R03 Batteries |
| Dimensions | 185 x 81 x 32 mm |
| Weight | Approx. 290 g |
