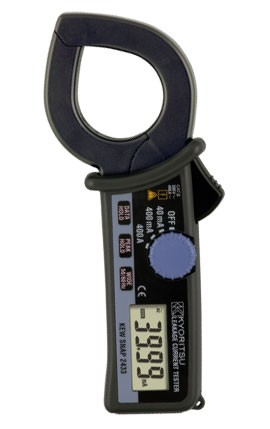

Kyoritsu 2433 Leakage Clamp Meter

Model: 2433 | Order No: KEW2433

Kyoritsu 2433 Leakage Clamp Meter-

Downloads:

More Kyoritsu Products

Ask an Expert

Kyoritsu 2433 Leakage Clamp Meter

Model: 2433 | Order No: KEW2433

Sale Price $430.32 USD
Regular Price $489.00 USD
Availability 5 to 6 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your KEW2433 Leakage Clamp Meter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your KEW2433 Leakage Clamp Meter

Kyoritsu 2433 Offers

Features

  • Least affected by external stray magnetic field: 10mA AC max. in proximity to a 15 mm diameter conductor 100A AC
  • Data hold function
  • Peak hold function
  • Sleep function to save battery
  • Designed to international safety standards IEC61010-1 CAT.II 300V
  • Frequency selector switch to eliminate the effect of harmonics
  • Three AC current ranges: 40mA/400mA/100A

Kyoritsu 2433 Specifications

AC
Measuring Ranges 4mA: 0 to 39.99mA
400mA: 0 to 399.9mA
400A: 0 to 399.9A
Accuracy
4mA/400mA 50/60Hz: ±1.0%rdg ±5dgt
40Hz to 1kHz: ±2.5%rdg ±5dgt
400A 0 to 300.0A
50/60Hz: ±1.0%rdg ±5dgt
40Hz to 1kHz: ±2.5%rdg ±5dgt
300.1 to 399.9A
50/60Hz: ±2.0%rdg
40Hz to 1kHz: ±5.0%rdg
General Specifications
Maximum Circuit Voltage Between Line/Neutral: 600V AC/DC
Against Earth: 300V AC/DC
Conductor Size Approx. Ø40mm
Safety Standards IEC 61010-1 CAT.III 300V Pollution Degree 2
IEC 61010-2-032
Effect of External Stray Magnetic Field 10mA AC approx. in proximity to a 15mm diameter conductor carrying 100A AC
Withstand Voltage 3700V AC for 1 minute
Response Time Approx. 2 seconds
Power Source 2 x R03 or equivalent (DC1.5V) batteries
Dimensions 185 x 81 x 32 mm
Weight Approx. 270 g
Click here for complete specifications on the Kyoritsu 2433

What's included with the Kyoritsu 2433

  • Clamp Meter
  • Carrying Case
  • 2 x 1.5V R03
  • Instruction Manual
