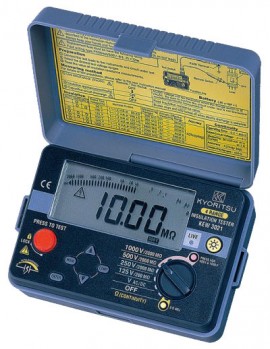

Kyoritsu 3021 Digital Insulation / Continuity Tester

Model: 3021 | Order No: KEW3021

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

/products/<img src="/img/" alt="" show="" loading="lazy" imagesize="thumb" id="productImage" />

/products/

/products/Learn More

Kyoritsu 3021 Offers

Features

  • Combining three functions in one unit, the Kyoritsu 3021 Digital Insulation/Continuity Tester performs insulation test with 4 voltage ranges, continuity testing and AC voltage measurement.
  • 200mA measuring current on continuity testing
  • Comparator function with PASS / FAIL and buzzer
  • 0Ω adjustment at continuity measuring range
  • Memory function up to 99 data
  • Backlight LCD provides easy reading in dark locations
  • Safety lock system prevents an erroneous operation on 500 and 1000 Volt ranges
  • Safety standard IEC 61010-01 CAT.III 600V

Kyoritsu 3021 Specifications

Test Voltage 125V
Measuring Range (Auto Range) 4.000/40.00/200.0MΩ
First Effective Measuring Range 0.1~20MΩ
Mid Scale Value 5MΩ
Accuracy ±2%rdg±6dgt
Second Effective Measuring Range Lower 0~0.099MΩ
Second Effective Measuring Range Upper 20.01~200.0MΩ
Accuracy ±5%rdg±6dgt
Rated current DC 1~1.2mA
Open Short Circuit Current 1.5mA max
Click here for complete specifications on the Kyoritsu 3021

What's included with the Kyoritsu 3021

  • Test Leads
  • Remote Control Switch Set
  • Shoulder Strap
  • Batteries
  • Instruction Manual
