Stand-alone data logger measures and stores more than 250,000 temperature readings per channel from two K, J or T-type thermocouple probes. Features user-programmable audible alarm thresholds with highly visible confidence/alarm LEDs and a graphic LCD that provides real-time analysis of data as a summary or as a graph. Includes two K-type thermocouple probes.
Stand-alone data logger measures and stores more than 250,000 temperature readings per channel from two K, J or T-type thermocouple probes. Features user-programmable audible alarm thresholds with highly visible confidence/alarm LEDs and a graphic LCD that provides real-time analysis of data as a summary or as a graph. Includes two K-type thermocouple probes.

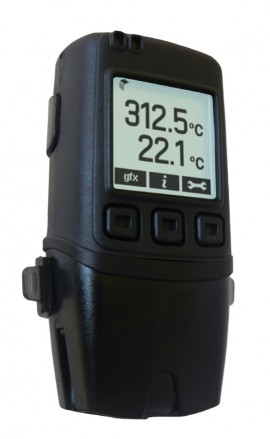

Dual Channel Thermocouple Data Logger with Graphic Screen
The EL-GFX-DTC standalone USB data logger measures and stores over 250,000 temperature readings from two J, K, or T-type thermocouple inputs at a resolution of 0.1°C. Using the Windows control software (available as a free-download), users can quickly set up the data logger and view downloaded data by connecting the device to the PC's USB port using the supplied cable.
The data logger features a high-contrast graphic LCD and three-input buttons which allows users to start, stop and restart the data logger using on-screen menus. This menu also provides real-time analysis of data either as a data summary (showing highest & lowest readings and alarm conditions) or as a graph that updates as new data is added. Multiple data logging sessions can be stored on the device ready for upload to a PC at a later date.
The two replaceable ½AA batteries typically allow logging for up to four months.
Features
Applications
The EL-GFX-DTC is suitable for a wide variety of applications, these include:
| Specification | Min. | Typ. | Max. | Unit | |
| Probe measurement range | K-type | -200 (+328) | +1350 (+2462) | °C (°F) | |
| J-type | -200 (+328) | +1190 (+2174) | °C (°F) | ||
| T-type | -200 (+328) | +390 (734) | °C (°F) | ||
| Internal resolution | 0.1 (0.1)* | °C (°F) | |||
| Accuracy (overall error) | ±0.5 (±0.9)** | °C (°F) | |||
| Logging rate | Every 1 second | Every 1 hour | Time | ||
| Operating temperature range* | -10 (-14) | +40 (+104) | °C (°F) | ||
| 2 x ½AA 3.6V Lithium Battery Life | 4† | Months | |||
| * Above 999.9°C/F display becomes 1°C. Internal resolution remains at 0.1°C/F. ** Quoted accuracy is for the data logger only when measuring within the specified operating temperature. Thermocouple error is not included and should also be taken into consideration. *** Operating temperature applies to the data logger module only. Please consult the probe manufacturer for operating temperature of thermocouple. † At 25°C and 10 minute logging rate with no alarm LEDs or sounder and minimal LCD use. |
|||||
Set up and data download of our EasyLog data loggers is enabled by our EL-WIN-USB software. It is compatible with 32-bit and 64-bit versions of Windows XP, Vista, 7 & 8.
Download the latest version of the software below. Please note, the software is not compatible with Mac or Linux.
