This utility locator uses Digital Signal Processing (DSP) for improved detection performance. The icon-based navigation offers ease of use.
This utility locator uses Digital Signal Processing (DSP) for improved detection performance. The icon-based navigation offers ease of use.

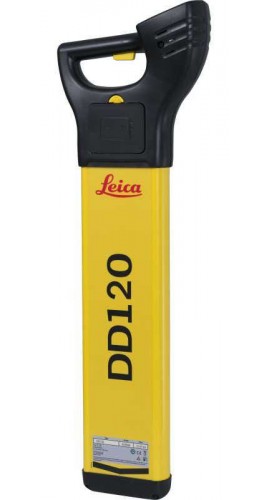

For state-of-the-art signal detection, use the Leica DD120 Smart Utility Locator. It utilizes Digital Signal Processing (DSP) to better filter signals and provide the readings you need. Plus, it is IP54-rated for reliable protection against most water and dust contaminants. Choose from 2 different transmitter modes: 33 kHz for standard everyday tracing and 8 kHz for mid-range distance tracing.
Features
Applications
| Passive Mode | Power, radio, audio |
| Trace Range | 8 and 33 kHz |
| Accuracy | ±10% |
| Display | Monochrome |
| Utility Pinpoint | Automatic |
| Internal Memory | None |
| Depth Detection | 10' (3 m) sonde; 10' (3 m) line |
| Current Measurement | No |
| GPS | No |
| Bluetooth | No |
| Digital Spray Mark | No |
| Compatibility | DA220 1 W and 3 W signal transmitters |
| Protection Rating | IP54 |
| Power Supply | Alkaline battery |
| Product Weight | 5.95 lbs (2.7 kg) |
| Manufacturer Warranty | 1 year |
