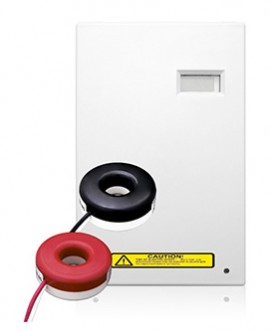

Leviton MMSMT-E02 0.5% Accurate Surface Mount Mini Meter Kit, 1P/3W, 1 kWh Resolution, 2x 200:0.1A solid core CTs, 1/Box 10/Carton

Model: MMSMT-E02 | UPC: 078477689462

Leviton MMSMT-E02 0.5% Accurate Surface Mount Mini Meter Kit, 1P/3W, 1 kWh Resolution, 2x 200:0.1A solid core CTs, 1/Box 10/Carton-

Downloads:

More Leviton Products

Ask an Expert

Leviton MMSMT-E02 0.5% Accurate Surface Mount Mini Meter Kit, 1P/3W, 1 kWh Resolution, 2x 200:0.1A solid core CTs, 1/Box 10/Carton

Model: MMSMT-E02 | UPC: 078477689462

The Leviton MMSMT-E02 0.5% accurate surface mount mini meter kit offers a fully integrated, line-powered wireless Automated Meter Readings (AMR) solution with 0.5% accuracy for multi-tenant applications. It offers an all-in-one, low cost bundled solution for tenant billing applications, new construction and retrofits.

The Leviton MMSMT-E02 0.5% accurate surface mount mini meter kit offers a fully integrated, line-powered wireless Automated Meter Readings (AMR) solution with 0.5% accuracy for multi-tenant applications. It offers an all-in-one, low cost bundled solution for tenant billing applications, new construction and retrofits.

Sale Price $499.56 USD
Regular Price $543.00 USD
Availability 2 to 3 Weeks
Quantity

Leviton MMSMT-E02 Offers

Features

  • Measures kWh
  • Revenue grade accuracy: conforms to all applicable standards of ANSI C12.20 (0.5)
  • Equipped standard with an Isolated Pulse Output channel for automated meter reading
  • Available in indoor flush mount and surface mount enclosure
  • Select kitted models include integrated wireless kWh transceiver for Automatic Meter
  • Reading (AMR) and temperature sensing capabilities and tamper-proof switch
  • 0.5% kWh Meter, certified to ANSI C12.20(0.5) by MET Test Labs (NRTL)
  • NY DPS and NYSERDA approved
  • 120/208/240V 1PH 3W, 200A
  • Pulse output—standard feature
  • Basic Kit includes submeter, specified enclosure, and two Current Transformers (CTs)
  • Use with solid core CTs
  • CT lead length maximum: 48"
  • UL/cUL Listed Energy Usage Monitor per CCN FTRZ
  • 5 year warranty
  • Revenue grade accuracy
  • Compact footprint fits almost anywhere
  • Integrated wireless kWh transceiver for Automatic Meter Reading (AMR)
  • Optional integrated tamper-proof switch

Applications

Use 0.5% Indoor Mini Meters in multi-tenant residential and certain commercial industrial applications for:

  • Multi-tenant residential applications
  • Single-phase applications
  • Tenant cost allocation
  • NYSERDA residential submetering program
  • Load profiling and benchmarking
  • Energy conservation and cost reduction
  • Green building initiatives and government mandates

Leviton MMSMT-E02 Specifications

Electrical
Input Configurations 1 or 2 Phase, 3 Wire
Voltage Inputs
L1 Black Wire, Voltage Input, Line 1, 120V with Respect to Neutral
CT Inputs
CT1: X1 Current Transformer Input, CT1. Colored Wire of CT1
Outputs
10, Isolated Output (10 Wh/P, Kh = 10) Isolated Pulse Output: 5 watthours on, 5 watthours off, referenced to ISOL COM. Connected at factory to wireless transceiver.
LED Indicators
Power LED (Green) Illuminates when the meter is supplied with proper voltage
Click here for complete specifications on the Leviton MMSMT-E02

What's included with the Leviton MMSMT-E02

  • Leviton MMSMT-E02 0.5% Accurate Surface Mount Mini Meter Kit, 1P/3W, 1 kWh Resolution, 2x 200:0.1A solid core CTs, 1/Box 10/Carton

Submetering Solutions

Ask a question about Leviton MMSMT-E02 0.5% Accurate Surface Mount Mini Meter Kit, 1P/3W, 1 kWh Resolution, 2x 200:0.1A solid core CTs, 1/Box 10/Carton

Customer Reviews for the Leviton MMSMT-E02

Leviton MMSMT-E02 Offers

Features

  • Measures kWh
  • Revenue grade accuracy: conforms to all applicable standards of ANSI C12.20 (0.5)
  • Equipped standard with an Isolated Pulse Output channel for automated meter reading
  • Available in indoor flush mount and surface mount enclosure
  • Select kitted models include integrated wireless kWh transceiver for Automatic Meter
  • Reading (AMR) and temperature sensing capabilities and tamper-proof switch
  • 0.5% kWh Meter, certified to ANSI C12.20(0.5) by MET Test Labs (NRTL)
  • NY DPS and NYSERDA approved
  • 120/208/240V 1PH 3W, 200A
  • Pulse output—standard feature
  • Basic Kit includes submeter, specified enclosure, and two Current Transformers (CTs)
  • Use with solid core CTs
  • CT lead length maximum: 48"
  • UL/cUL Listed Energy Usage Monitor per CCN FTRZ
  • 5 year warranty
  • Revenue grade accuracy
  • Compact footprint fits almost anywhere
  • Integrated wireless kWh transceiver for Automatic Meter Reading (AMR)
  • Optional integrated tamper-proof switch

Applications

Use 0.5% Indoor Mini Meters in multi-tenant residential and certain commercial industrial applications for:

  • Multi-tenant residential applications
  • Single-phase applications
  • Tenant cost allocation
  • NYSERDA residential submetering program
  • Load profiling and benchmarking
  • Energy conservation and cost reduction
  • Green building initiatives and government mandates
Show More...

Leviton MMSMT-E02 Specifications

Electrical
Input Configurations 1 or 2 Phase, 3 Wire
Voltage Inputs
L1 Black Wire, Voltage Input, Line 1, 120V with Respect to Neutral
CT Inputs
CT1: X1 Current Transformer Input, CT1. Colored Wire of CT1
Outputs
10, Isolated Output (10 Wh/P, Kh = 10) Isolated Pulse Output: 5 watthours on, 5 watthours off, referenced to ISOL COM. Connected at factory to wireless transceiver.
LED Indicators
Power LED (Green) Illuminates when the meter is supplied with proper voltage
Click here for complete specifications on the Leviton MMSMT-E02

What's included with the Leviton MMSMT-E02

  • Leviton MMSMT-E02 0.5% Accurate Surface Mount Mini Meter Kit, 1P/3W, 1 kWh Resolution, 2x 200:0.1A solid core CTs, 1/Box 10/Carton
