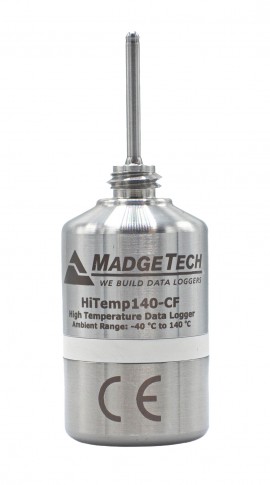

The HiTemp140-CF is ideal for precise heat penetration testing and is designed for reliable temperature analysis. It attaches via MadgeTech Canning Fitting to jars, cans or other containers and can withstand temperatures up to 284°F (140.0°C). This model has a 1.3" (3.30 cm) probe.
The HiTemp140-CF is ideal for precise heat penetration testing and is designed for reliable temperature analysis. It attaches via MadgeTech Canning Fitting to jars, cans or other containers and can withstand temperatures up to 284°F (140.0°C). This model has a 1.3" (3.30 cm) probe.
The HiTemp140-CF combines the robust features of the standard HiTemp140 with added versatility for direct integration into canning processes. This high-precision temperature data logger, designed for harsh environments, is constructed from durable stainless steel and is submersible, making it ideal for use with retorts. It can withstand temperatures up to 284°F (140°C) and maintains an accuracy of ±0.18°F (±0.1°C).
This variant features a threaded end for seamless compatibility with both the CF202 Canning Fitting and the ThermaLock-Pro Canning Fitting, enhancing its utility in food processing applications. The HiTemp140-CF can store up to 32,256 readings and includes a rigid external probe that can measure temperatures up to 500°F (260°C), with custom probe lengths available up to 7". Equipped with non-volatile solid state memory, it ensures data retention even if the battery is discharged, recording date and time stamped readings. The HiTemp140-CF is perfectly suited for continuous use in both wet and dry environments up to 284°F (140°C).
The HiTemp140-CF is fully submersible and is rated IP68. It can be placed in environments with up to 230 feet (70 m) of water.
Features
| Temperature | |
| Temperature Sensor | 100 Ω Platinum RTD |
| Probe Measurement Range | -328 to 500°F (-200 to 260°C) Body of logger cannot exceed 284°F (140°C) |
| Temperature Resolution | 0.02°F (0.01°C) |
| Calibrated Accuracy | ±0.18°F from 68 to 284°F (±0.1°C from 20 to 140°C) ±0.54°F from -4 to 67.98°F (±0.3°C from -20 to +19.99°C) ±0.72°F from -40 to -4.02°F (±0.4°C from -40 to -20.01°C) |
| General Specifications | |
| Start Modes | Software programmable immediate start Delay start up to 18 months in advance |
| Stop Modes | Manual or timed (specific date and time) |
| Real Time Recording | May be used with PC to monitor and record data in real time |
| Password Protection | An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password. |
| Memory | 32,256 readings |
| Trigger Settings | High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers. |
| Reading in Trigger Settings Mode | 6,451 readings |
| Wrap Around | Yes |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Calibration | Digital calibration through software |
| Calibration Date | Automatically recorded within device |
| Battery | Type: 3.6V high-temperature lithium battery included; user replaceable Life: 2 years typical (1 minute reading rate) |
| Data Format | Date and time stamped °C, °F, K or °R |
| Time Accuracy | ±1 minute/month at 68 to 86°F (20 to 30°C) |
| Computer Interface | IFC400 or IFC406 USB docking station required; 125,000 baud |
| Operating System Compatibility | Windows XP SP3 or later |
| Software Compatibility | Standard Software version 2.03.06 or later Secure Software version 4.1.3.0 or later |
| Operating Environment | -40 to 284°F (-40 to 140°C ) 0 to 100%RH, 0.002 to 100 PSIA |
| IP Rating | IP68 |
| Material | 316 Stainless Steel, Radel |
| Approvals | CE |
| Dimensions | Body: 1.55 x 0.97" (39.3 x 24.6 mm) Probe: 1.3 x 0.095" (33.02 x 2.4 mm) |
| Weight | 4.2 oz (120 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140-CF-1.3 High Temperature Data Logger, 1.3" probe, 284°F.
| Temperature | |
| Temperature Sensor | 100 Ω Platinum RTD |
| Probe Measurement Range | -328 to 500°F (-200 to 260°C) Body of logger cannot exceed 284°F (140°C) |
| Temperature Resolution | 0.02°F (0.01°C) |
| Calibrated Accuracy | ±0.18°F from 68 to 284°F (±0.1°C from 20 to 140°C) ±0.54°F from -4 to 67.98°F (±0.3°C from -20 to +19.99°C) ±0.72°F from -40 to -4.02°F (±0.4°C from -40 to -20.01°C) |
| General Specifications | |
| Start Modes | Software programmable immediate start Delay start up to 18 months in advance |
| Stop Modes | Manual or timed (specific date and time) |
| Real Time Recording | May be used with PC to monitor and record data in real time |
| Password Protection | An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password. |
| Memory | 32,256 readings |
| Trigger Settings | High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers. |
| Reading in Trigger Settings Mode | 6,451 readings |
| Wrap Around | Yes |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Calibration | Digital calibration through software |
| Calibration Date | Automatically recorded within device |
| Battery | Type: 3.6V high-temperature lithium battery included; user replaceable Life: 2 years typical (1 minute reading rate) |
| Data Format | Date and time stamped °C, °F, K or °R |
| Time Accuracy | ±1 minute/month at 68 to 86°F (20 to 30°C) |
| Computer Interface | IFC400 or IFC406 USB docking station required; 125,000 baud |
| Operating System Compatibility | Windows XP SP3 or later |
| Software Compatibility | Standard Software version 2.03.06 or later Secure Software version 4.1.3.0 or later |
| Operating Environment | -40 to 284°F (-40 to 140°C ) 0 to 100%RH, 0.002 to 100 PSIA |
| IP Rating | IP68 |
| Material | 316 Stainless Steel, Radel |
| Approvals | CE |
| Dimensions | Body: 1.55 x 0.97" (39.3 x 24.6 mm) Probe: 1.3 x 0.095" (33.02 x 2.4 mm) |
| Weight | 4.2 oz (120 g) |
