Pressure and high temperature data logger is specifically created for use in autoclave validation, mapping studies and pressurized processes. Made of rugged stainless steel, this device is fully submersible, less than 2.5" in length, allowing it to fit discretely inside small spaces, and features a flush top design.
Pressure and high temperature data logger is specifically created for use in autoclave validation, mapping studies and pressurized processes. Made of rugged stainless steel, this device is fully submersible, less than 2.5" in length, allowing it to fit discretely inside small spaces, and features a flush top design.

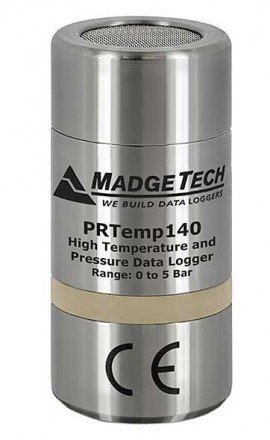

This Madgetech PRTemp140-LVL High-Temperature and Pressure Data Logger with Flush Top is capable of measuring temperatures from -4 to 284°F (-20 to 140°C) and pressure from 0 to 5 bar (0 to 72.5 psia). The data logger is made of stainless steel for rugged durability.
Features
| Temperature Sensor | RTD (Resistance Temperature Detector) |
| Temperature Range | -4 to 284°F (-20 to 140°C) |
| Temperature Resolution | 0.02°F (0.01°C) |
| Temperature Accuracy | ±0.1°C |
| Pressure Sensor | Semiconductor strain gauge |
| Pressure Range | 0 to 5 bar (0 to 72.5 psia) |
| Pressure Resolution | 0.0001 bar |
| Pressure Accuracy | ±0.03 bar (±0.435 psi) |
| Memory | 32,767 readings |
| Reading Rate | 1 second to once every 24 hours |
| Baud Rate | 125,000 |
| Material | 316 stainless steel |
| IP Rating | 68 |
| Approvals | CE |
| Product Diameter | 0.97" (24.6 mm) |
| Product Height | 1.98" (50.2 mm) |
| Product Weight | 0.19 lb (86.18 g) |
| Temperature Sensor | RTD (Resistance Temperature Detector) |
| Temperature Range | -4 to 284°F (-20 to 140°C) |
| Temperature Resolution | 0.02°F (0.01°C) |
| Temperature Accuracy | ±0.1°C |
| Pressure Sensor | Semiconductor strain gauge |
| Pressure Range | 0 to 5 bar (0 to 72.5 psia) |
| Pressure Resolution | 0.0001 bar |
| Pressure Accuracy | ±0.03 bar (±0.435 psi) |
| Memory | 32,767 readings |
| Reading Rate | 1 second to once every 24 hours |
| Baud Rate | 125,000 |
| Material | 316 stainless steel |
| IP Rating | 68 |
| Approvals | CE |
| Product Diameter | 0.97" (24.6 mm) |
| Product Height | 1.98" (50.2 mm) |
| Product Weight | 0.19 lb (86.18 g) |
