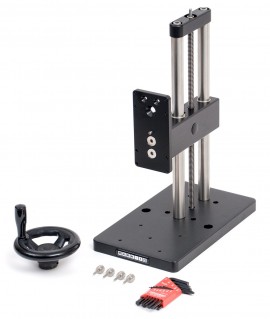

Ideal for low-force applications, this test stand operates with a hand wheel for better control of motion and has a compressive force up to 100 lbF (500 N). Work with this test stand that can conveniently mount to a workbench.
Ideal for low-force applications, this test stand operates with a hand wheel for better control of motion and has a compressive force up to 100 lbF (500 N). Work with this test stand that can conveniently mount to a workbench.
Economical and compact, this test stand works for many compression and tension testing applications with digital force gauges and gripping fixtures.
Features
Applications
| Load Capacity | 100 lbF (500N) |
| Maximum Travel | 9" (229 mm) |
| Loading Method | Hand wheel |
| Travel Rate | 0.083" (2.1 mm) per hand wheel rev. |
| Dimensions | 10 x 6 x 17" (254 x 152.4 x 431 mm) |
| Weight | 10 lbs (4.5 kg) |
Click on a category to view a selection of compatible accessories with the Mark-10 ES20 Manual Test Stand, 100 lbF, hand wheel operated.
| Load Capacity | 100 lbF (500N) |
| Maximum Travel | 9" (229 mm) |
| Loading Method | Hand wheel |
| Travel Rate | 0.083" (2.1 mm) per hand wheel rev. |
| Dimensions | 10 x 6 x 17" (254 x 152.4 x 431 mm) |
| Weight | 10 lbs (4.5 kg) |
