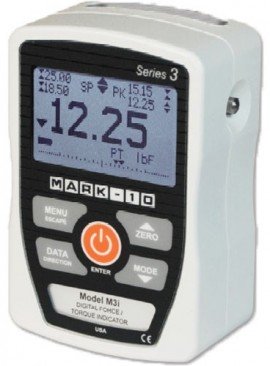

Mark-10 M3i 3i Basic Digital Force / Torque Indicator, 2,000 Hz

Model: 3I | Order No: M3I

Mark-10 M3i 3i Basic Digital Force / Torque Indicator, 2,000 Hz-

Downloads:

More Mark-10 Products

Ask an Expert

Mark-10 M3i 3i Basic Digital Force / Torque Indicator, 2,000 Hz

Model: 3I | Order No: M3I

The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors.

The 3i digital force / torque indicator is designed to work with a wide range of Mark-10 remote force and torque sensors.

Sale Price $641.25 USD
Regular Price $675.00 USD
Availability 5 to 6 Weeks
Quantity

Recommended Accessories

Mark-10 MR3-50 Torque Sensor, 50 lbFin / 4 lbFft / 800 ozFin / 570 Ncm / 5.7 Nm-

Mark-10 MR3-50 Torque Sensor, 50 lbFin / 4 lbFft / 800 ozFin / 570 Ncm / 5.7 Nm

MR3-50

Mark-10 MR05-500 Force Sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN-

Mark-10 MR05-500 Force Sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN

MR05-500

Mark-10 3I Offers

With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor's smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.

Features

  • Interchangeable force and torque sensors through Plug & Test™ technology (sensors are sold separately)
  • High-speed 2,000 Hz sampling rate
  • Ultra-compact size
  • Large backlit graphic display
  • Programmable set points with pass/fail indicators
  • Live load bar graph with set point markers
  • Peak readings and set points always displayed
  • Configurable audio alarms and key tones
  • Programmable auto-shutoff
  • Configurable audio alarms and key tones
  • Battery or AC operation
  • MESUR™ Lite data collection software included
  • CE mark

Mark-10 3I Specifications

Accuracy ±0.2% of full scale + sensor
Sampling Rate 2,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery life Backlight On: Up to 7 hours of continuous use
Backlight Off: Up to 24 hours of continuous use
USB Output Configurable to 115,200 baud
Weight 0.7 lb (0.3 kg)
Environmental requirement 40 to 100°F, max. 96% humidity, non-condensating
Click here for complete specifications on the Mark-10 3I

What's included with the Mark-10 3I

  • M3i 3i Basic Digital Force / Torque Indicator
  • Carrying Case
  • NIST-Traceable Certificate of Calibration with Data
  • Universal Voltage AC Adapter
  • Battery
  • Quick-Start Guide
  • USB Cable
  • Resource CD (USB Driver, MESUR™ Lite Software, MESUR™Gauge and MESUR™Gauge Plus 90-Day Trial, and User's Guide)

Click on a category to view a selection of compatible accessories with the Mark-10 M3i 3i Basic Digital Force / Torque Indicator, 2,000 Hz.

Mark-10 MR3-50 Torque Sensor, 50 lbFin / 4 lbFft / 800 ozFin / 570 Ncm / 5.7 Nm MR3-50
The Mark-10 MR3-50 torque sensor is intended for use with 5i or 3i digital indicators for measuring bidirectional torque.



Mark-10 MR05-500 Force Sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN MR05-500
Series R05 fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements.



Ask a question about Mark-10 M3i 3i Basic Digital Force / Torque Indicator, 2,000 Hz

Customer Reviews for the Mark-10 3I

Mark-10 3I Offers

With exclusive Plug & Test™ technology, all calibration and configuration data is saved within the sensor's smart connector, not the indicator, allowing for true interchangeability. In addition, all sensors are fully compatible with other Mark-10 indicators.

Features

  • Interchangeable force and torque sensors through Plug & Test™ technology (sensors are sold separately)
  • High-speed 2,000 Hz sampling rate
  • Ultra-compact size
  • Large backlit graphic display
  • Programmable set points with pass/fail indicators
  • Live load bar graph with set point markers
  • Peak readings and set points always displayed
  • Configurable audio alarms and key tones
  • Programmable auto-shutoff
  • Configurable audio alarms and key tones
  • Battery or AC operation
  • MESUR™ Lite data collection software included
  • CE mark
Show More...

Mark-10 3I Specifications

Accuracy ±0.2% of full scale + sensor
Sampling Rate 2,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery life Backlight On: Up to 7 hours of continuous use
Backlight Off: Up to 24 hours of continuous use
USB Output Configurable to 115,200 baud
Weight 0.7 lb (0.3 kg)
Environmental requirement 40 to 100°F, max. 96% humidity, non-condensating
Click here for complete specifications on the Mark-10 3I

What's included with the Mark-10 3I

  • M3i 3i Basic Digital Force / Torque Indicator
  • Carrying Case
  • NIST-Traceable Certificate of Calibration with Data
  • Universal Voltage AC Adapter
  • Battery
  • Quick-Start Guide
  • USB Cable
  • Resource CD (USB Driver, MESUR™ Lite Software, MESUR™Gauge and MESUR™Gauge Plus 90-Day Trial, and User's Guide)

Click on a category to view a selection of compatible accessories with the Mark-10 M3i 3i Basic Digital Force / Torque Indicator, 2,000 Hz.

Mark-10 MR3-50 Torque Sensor, 50 lbFin / 4 lbFft / 800 ozFin / 570 Ncm / 5.7 Nm MR3-50
The Mark-10 MR3-50 torque sensor is intended for use with 5i or 3i digital indicators for measuring bidirectional torque.



Mark-10 MR05-500 Force Sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN MR05-500
Series R05 fully enclosed smart sensors are designed for pull / push measurements. Useful in ergonomics testing, workplace safety testing, and general lifting or tension / compression requirements.



Ask a question about Mark-10 M3i 3i Basic Digital Force / Torque Indicator, 2,000 Hz

Customer Reviews for the Mark-10 3I
