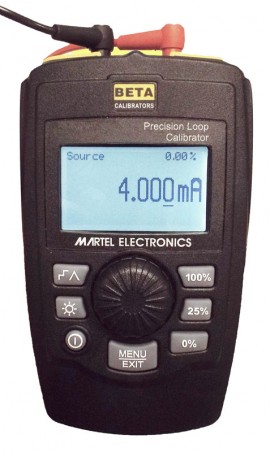

This mA loop calibrator features a user friendly interface with dedicated buttons and a rotary encoder (Quick-Set Knob). This combination dramatically reduces the time it takes to measure, or source voltage or current and power up a loop.
This mA loop calibrator features a user friendly interface with dedicated buttons and a rotary encoder (Quick-Set Knob). This combination dramatically reduces the time it takes to measure, or source voltage or current and power up a loop.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
| Ranges | mA (0 to 24 mA)
Volts (0 to 30 VDC) |
| Resolution | 1uA on mA ranges
1mV on voltage range |
| Accuracy | 0.01% ± 2 LSD all ranges (at 18 to 28°C) |
| Operating Temperature | 14 to 131°F (-10 to 55°C) |
| Operating Humidity | 10-95% RH non-condensing |
| Stability | 20ppm of FS/°C from 14 to 64°F (-10 to 18°C) and 82 to 131°F (28 to 55°C) |
| Display Resolution | 128 x 64 pixels |
| Power Supply | 6 x AAA Batteries |
| Battery Life | > 40 hours continuous use |
| Loop Compliance Voltage | 24VDC at 20mA |
| Dimensions | 6 x 3.6 x 1.3" (15 x 9 x 3 cm) |
| Ranges | mA (0 to 24 mA)
Volts (0 to 30 VDC) |
| Resolution | 1uA on mA ranges
1mV on voltage range |
| Accuracy | 0.01% ± 2 LSD all ranges (at 18 to 28°C) |
| Operating Temperature | 14 to 131°F (-10 to 55°C) |
| Operating Humidity | 10-95% RH non-condensing |
| Stability | 20ppm of FS/°C from 14 to 64°F (-10 to 18°C) and 82 to 131°F (28 to 55°C) |
| Display Resolution | 128 x 64 pixels |
| Power Supply | 6 x AAA Batteries |
| Battery Life | > 40 hours continuous use |
| Loop Compliance Voltage | 24VDC at 20mA |
| Dimensions | 6 x 3.6 x 1.3" (15 x 9 x 3 cm) |
