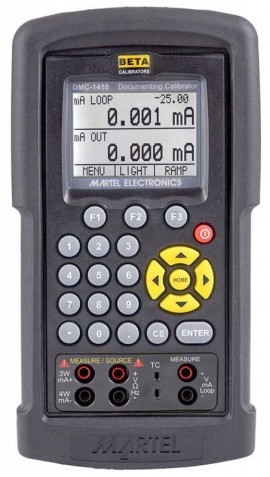

Martel DMC-1410 Documenting Multifunction Calibrator

Model: DMC-1410 | Order No: 1920002

This documenting multifunction calibrator measures and sources electrical and physical parameters. It’s versatile providing access to a complete range of calibration functions.

This documenting multifunction calibrator measures and sources electrical and physical parameters. It’s versatile providing access to a complete range of calibration functions.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Fluke 753 Documenting Process Calibrator-

Fluke 753 Documenting Process Calibrator

Model: 753

Equipped with a USB interface and communication cable, this process calibrator can source, simulate, and measure pressure, temperature, and electrical signals. Users can download procedures, lists, and instructions created with software, and even upload data for printing, archiving, and analysis.

Learn More

Fluke 754 Documenting Process Calibrator with HART communication-

Fluke 754 Documenting Process Calibrator with HART communication

Model: 754

Rugged and compact, this documenting process calibrator is powerful yet easy to use. Ideal for troubleshooting HART instrumentation, the calibrator offers communication and calibration functions in one tool. With a bright display and multi-lingual interface, the calibrator measures pressure, temperature, and electrical signals.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Martel DMC-1410 Offers

The Martel DMC-1410 documenting multifunction calibrator measures and sources electrical and physical parameters. It's versatile providing access to a complete range of calibration functions including the following:

  • Dual Display. The upper display is used for the measurement of volts, current, and pressure. The lower display can be used to measure volts, current, pressure, resistance temperature detectors (RTD's), thermcouples (TC's), frequency, resistance, and to source pulse trains.
  • A thermocouple (TC) input/output terminal with automatic reference-junction temperature compensation
  • Setpoint in each range for quickly increasing/decreasing output
  • Complete serial interface for remote control
  • Isolated read back for transmitter calibrations
  • Documenting capability for up to 50 tags

A simple easy-to-use software package is included that allows the user to build a database of all assets that need calibration and download work orders to the calibrator. You will not find a more cost effective documeting solution on the market.

Martel DMC-1410 Specifications

Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -4 to 158°F (-20 to 70°C)
Power Supply 4 x AA Batteries
Low Battery Warning Yes
Display High contrast 128 x 64 pixels addressable graphic LCD w backlight
2.4 x 1.8" (63 x 44 mm)
Serial Communications Yes, ASCII, RS-232, requires optional 1919069 serial cable or 1919896 USB cable
CE-EMC EN50082-1 and EN55022: 1994 Class B
Safety CSA C22.2 No. 1010-1: 1992
Weight 1.8 lb (0.82 kg)
Dimensions 8.5 x 4.8 x 2.1" (22 x 12 x 5.3 cm)
Click here for complete specifications on the Martel DMC-1410

What's included with the Martel DMC-1410

  • Documenting Multifunction Calibrator
  • NIST Traceable Calibration Certificate
  • Test Leads
  • 4 x AA Alkaline Batteries
  • Deluxe Soft Side Carrying Case
