Operation of this calibrator is made easy through the use of a sealed membrane keypad with simple controls. When combined with a Martel MECP100, MECP500, or MECP10K pump, the T-140 kit makes a great package to handle your pneumatic or hydraulic calibration requirements.
Operation of this calibrator is made easy through the use of a sealed membrane keypad with simple controls. When combined with a Martel MECP100, MECP500, or MECP10K pump, the T-140 kit makes a great package to handle your pneumatic or hydraulic calibration requirements.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

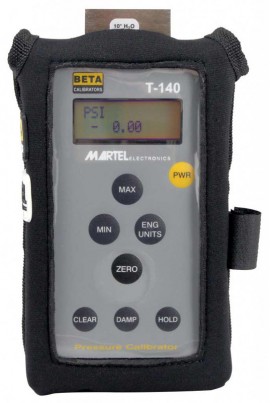

Precision Pressure Calibrator / Pressure Manometer Pressure Manometer Features
The pressure manometer is available in several ranges; 10" H2O, 200" H2O and 30, 100, 300, and 3,000 psi. Operation of these calibrators is made easy through the use of a sealed membrane keypad with simple controls. When combined with a Martel Pump, the Pressure Calibration Kit makes a great package to handle your pneumatic calibration requirements.
| Range | ± 10" H2O |
| Accuracy | ±0.1% FS |
| Resolution | 0.001" H2O |
| Engineering Units | PSI, in H2O, cmH2O, mH2O, FtH2O, mBAR, BAR, inHg, mmHg, cmHg, kg/cm2, TORR, ATM, KPa |
| Temperature Stability | From 32 to 64°F (0 to 18°C), and 82 to 122°F (28 to 50°C): ±0.01% / FS/°C; |
| Media | Clean Dry Air or Gas only |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Power Supply | 9V Battery |
| Dimensions | 5.7 x 3.5 x 1.43" (14.5 x 8.9 x 3.6 cm) |
| Weight | 14 oz (396 g) |
| Range | ± 10" H2O |
| Accuracy | ±0.1% FS |
| Resolution | 0.001" H2O |
| Engineering Units | PSI, in H2O, cmH2O, mH2O, FtH2O, mBAR, BAR, inHg, mmHg, cmHg, kg/cm2, TORR, ATM, KPa |
| Temperature Stability | From 32 to 64°F (0 to 18°C), and 82 to 122°F (28 to 50°C): ±0.01% / FS/°C; |
| Media | Clean Dry Air or Gas only |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Power Supply | 9V Battery |
| Dimensions | 5.7 x 3.5 x 1.43" (14.5 x 8.9 x 3.6 cm) |
| Weight | 14 oz (396 g) |
