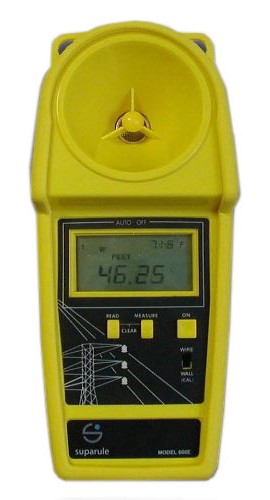

Measures the height of up to six overhead cables. Calibration and maintenance free operation.
Measures the height of up to six overhead cables. Calibration and maintenance free operation.
Features
Applications
| Resolution | ¼" (5 mm) if <10 m ½" (10 mm) if >10 m |
| Accuracy | Typically less than 0.5% error ±2 digits |
| Height Range | 10 to 75' (3 to 23 m) |
| Power Source | 9 V alkaline leak-proof battery (included) |
| Operating Temperature | 14 to 104°F (-10 to 40°C) with compensation over the full range |
| Storage | Store in a dry area. Do not expose to extreme temperatures. Use only leak-proof batteries. |
| Battery Life | > 50,000 Measurements |
| Dimensions | 3 x 4 x 8.5" (70 x 100 x 205 mm) |
| Weight | 1.1 lbs (0.5 kg) |
