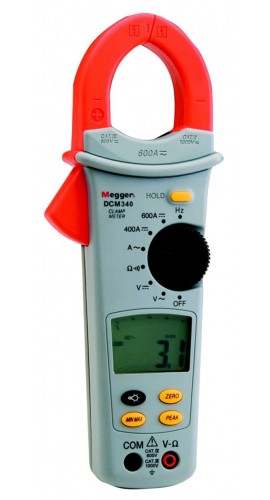

A highly versatile digital clamp meter that is ideal for applications such as installations, maintenance, monitoring, or checking of AC or DC electrical systems and equipment. Additionally, this instrument can measure AC and DC currents up to 600 A AC and DC voltage up to 600 V.
A highly versatile digital clamp meter that is ideal for applications such as installations, maintenance, monitoring, or checking of AC or DC electrical systems and equipment. Additionally, this instrument can measure AC and DC currents up to 600 A AC and DC voltage up to 600 V.
Features
Applications
| AC Current | |
| Range | 0 to 60 A 60 to 400 A 400 to 600 A |
| Accuracy | ±1.9% ±7 digits: ±2.5% ±7 digits ±1.9% ±5 digits: ±2.5% ±5 digits ±2.5% ±5 digits: ±2.9% ±5 digits |
| DC Current | |
| Range | 0 to 60 A 60 to 400 A 400 to 600 A |
| Accuracy | ±1.5% ±10 digits ±1.9% ±5 digits ±1.9% ±10 digits |
| Voltage | |
| Range | 0 to 400 V 400 to 600 V Input impedance |
| 50 to 500 Hz Accuracy | ±1.0% ±5 digits ±1.0% ±5 digits 1 MΩ // ≤100 pF |
| DC Accuracy | ±0.7% ±2 digits ±0.7% ±2 digits |
