Enables low resistance measurement with high noise immunity and smooth DC output. Save, download and delete results. Integral Li-Ion battery and mains powered.
Enables low resistance measurement with high noise immunity and smooth DC output. Save, download and delete results. Integral Li-Ion battery and mains powered.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Features
Applications
Utilities & Service Contractors – commissioning new installations & regular maintenance testing of
Original Equipment Manufacturer – detecting manufacturing defects
Transport – manufacturing & maintenance
| Measurement range | 0.1 μΩ - 1.999 Ω |
| Humidity | <85% R.H. non-condensing |
| Humidité | <85% H.R. sans condensation |
| Resolution | 0.1 μΩ |
| Noise rejection | Differential 100 mV @ 50-60 Hz on Test Leads |
| DC output | Smooth DC |
| IP rating | IP54 Lid open / IP65 Lid closed |
| Operating temperature range | -20°C up to 50°C |
| Storage temperature range | -30°C up to 70°C |
| Battery life | 200 single 100 A tests or up to 2 x 10 minutes continuous 100 A output |
| Battery type | User replaceable Li-ion battery pack |
| Battery charge time | Full charge in 2.5 Hrs from dead |
| Maximum output voltage | 2 V |
| EMC | IEC61326-1 |
| Safety | IEC61010 CAT IV 600 VAC / 500 VDC up to 2000 m CAT IV 300 V up to 4000 m |
| Dimensions | 400 x 300 x 200 mm |
| Weight | 7.9 kg |
Lead set is NOT included with the instrument and must be ordered as an optional accessory.

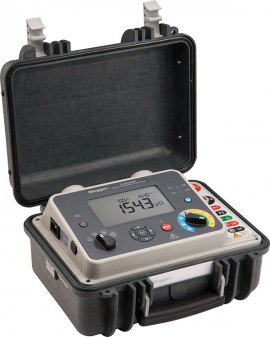

Click on a category to view a selection of compatible accessories with the Megger DLRO100XB 100A Micro-ohmmeter/Data Logger, AC/DC.
| Measurement range | 0.1 μΩ - 1.999 Ω |
| Humidity | <85% R.H. non-condensing |
| Humidité | <85% H.R. sans condensation |
| Resolution | 0.1 μΩ |
| Noise rejection | Differential 100 mV @ 50-60 Hz on Test Leads |
| DC output | Smooth DC |
| IP rating | IP54 Lid open / IP65 Lid closed |
| Operating temperature range | -20°C up to 50°C |
| Storage temperature range | -30°C up to 70°C |
| Battery life | 200 single 100 A tests or up to 2 x 10 minutes continuous 100 A output |
| Battery type | User replaceable Li-ion battery pack |
| Battery charge time | Full charge in 2.5 Hrs from dead |
| Maximum output voltage | 2 V |
| EMC | IEC61326-1 |
| Safety | IEC61010 CAT IV 600 VAC / 500 VDC up to 2000 m CAT IV 300 V up to 4000 m |
| Dimensions | 400 x 300 x 200 mm |
| Weight | 7.9 kg |
Lead set is NOT included with the instrument and must be ordered as an optional accessory.
Click on a category to view a selection of compatible accessories with the Megger DLRO100XB 100A Micro-ohmmeter/Data Logger, AC/DC.
