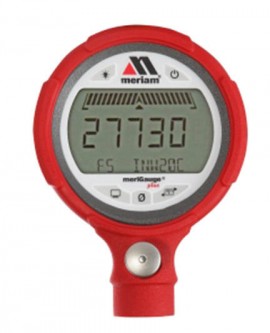

Image is for reference only, refer to product info for complete details.
Supports detachable sensors to meet all of your range requirements. This gauge includes one meriSense sensor with a pressure range of -15 to 30 PSI compound.
Supports detachable sensors to meet all of your range requirements. This gauge includes one meriSense sensor with a pressure range of -15 to 30 PSI compound.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Digital Pressure Gauges category for similar products.
Or let's do a search and help you find what you need:
The meriGauge® Plus is a break-through digital pressure gauge with modular sensors. It is unique in that it features the capability to support detachable sensors to meet all of your range requirements. This modular system allows you to use only the pressure ranges you need. To add to the efficiency of this gauge, the small sensors contain the calibration and they are easily exchanged for calibration so the gauge itself is never "out for calibration."
Features
| Display | 6-digit, white LED backlight, red (beacon) error backlight |
| Gauge Body | Powder coated T6 aluminum |
| Power | 4 x 1.5 V AA alkaline |
| Operating Conditions | 14 to 122°F (-10 to 50°C) |
| Sensor Body | Stainless Steel |
| Accuracy | 0 to 110% of Range: ±(0.02% of Full Scale) 0 to 110% of Range: (0.005% of Reading) Vacuum*: ±(0.02% of Full Scale) *Vacuum = -14.5 ps |
| Process Connection | 1/4" NPT |
| Electrical Connections | Hardened gold (30 micron) connection good for >1M cycles |
| Dimensions | 4.75 x 6.59 x 1.58" (120.7 x 167.3 x 40.1 mm) |
| Weight | Approx. 1.34 lbs (0.0608 kg) with batteries |
| Display | 6-digit, white LED backlight, red (beacon) error backlight |
| Gauge Body | Powder coated T6 aluminum |
| Power | 4 x 1.5 V AA alkaline |
| Operating Conditions | 14 to 122°F (-10 to 50°C) |
| Sensor Body | Stainless Steel |
| Accuracy | 0 to 110% of Range: ±(0.02% of Full Scale) 0 to 110% of Range: (0.005% of Reading) Vacuum*: ±(0.02% of Full Scale) *Vacuum = -14.5 ps |
| Process Connection | 1/4" NPT |
| Electrical Connections | Hardened gold (30 micron) connection good for >1M cycles |
| Dimensions | 4.75 x 6.59 x 1.58" (120.7 x 167.3 x 40.1 mm) |
| Weight | Approx. 1.34 lbs (0.0608 kg) with batteries |
