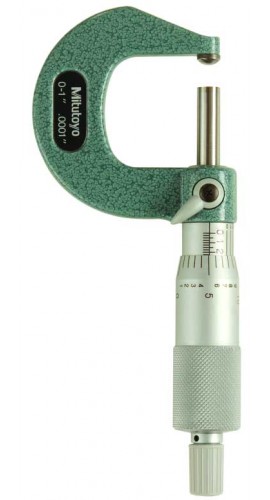

Mitutoyo 115-153 Series 115 Spherical Face Micrometers-

More Mitutoyo Products

Ask an Expert

Mitutoyo 115-153 Series 115 Spherical Face Micrometers

Model: 115-153

The Mitutoyo spherical face micrometer measures the thickness of curved parts within +/- 0.0001" for accuracy and displays readings on an analog mechanical counter. Available in inch or metric units.

The Mitutoyo spherical face micrometer measures the thickness of curved parts within +/- 0.0001" for accuracy and displays readings on an analog mechanical counter. Available in inch or metric units.

Sale Price $136.59 USD
Regular Price $174.00 USD
Availability 1 to 2 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 115-153 Series 115 Spherical Face Micrometers

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 115-153 Series 115 Spherical Face Micrometers

Mitutoyo 115-153 Offers

  • Useful in measuring the wall thickness of small parts such as sleeves, collars, tubings and various cylindrical workpieces
  • Used to measure dimensions from the inside of holes to outside edges
  • The spherical anvil contacts the inside curved surface providing a single point contact and permitting accurate gaging of the wall thickness to .0001"
  • Carbide-tipped measuring faces

Product Specifications

  • Range 0 in [Min], 1 in [Max]
  • Resolution (Length) 0.00010 in
  • Accuracy ±0.00015 in
  • Anvil Tip Type Spherical
  • Spindle Diam 1/2 in
  • Spindle Tip Type Cylindrical
  • Tip Material Carbide
  • Display Type Vernier
  • Thimble Mechanism Ratchet
  • Measuring System Inch
  • Type External Micrometer

Applications

  • Measurement of curved surfaces and spherical features
  • Wall thickness measurement in tubes and rounded parts
  • Dimensional inspection of non-flat components

Mitutoyo 115-153 Specifications

Units Inch
Range 0 to 1"
Accuracy ±.00015"
Mass 180 g
Graduation 0.0001"
Anvil/Spindle S-F
Flatness -
Remarks D: .40"
Technology Mechanical
SPC Output No
Ratchet/Thimble Rachet stop

What's included with the Mitutoyo 115-153

  • Mitutoyo 115-153 Series 115 Spherical Face Micrometers
