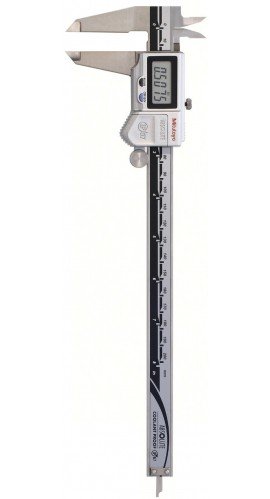

Mitutoyo 500-763-20 Absolute Coolant Proof Digimatic Caliper, 0-8" (0-200mm), SPC Output

Model: 500-763-20

Mitutoyo 500-763-20 Absolute Coolant Proof Digimatic Caliper, 0-8" (0-200mm), SPC Output-

Downloads:

More Mitutoyo Products

Ask an Expert

Mitutoyo 500-763-20 Absolute Coolant Proof Digimatic Caliper, 0-8" (0-200mm), SPC Output

Model: 500-763-20

Dust/Water Protection Conforming to IP67 Level. This coolant-proof caliper offers a measuring range of 0-8 inches and an accuracy of +/- .001 in or +/- .02 mm.

Dust/Water Protection Conforming to IP67 Level. This coolant-proof caliper offers a measuring range of 0-8 inches and an accuracy of +/- .001 in or +/- .02 mm.

Your Price $405.00 USD
Availability 1 to 2 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 500-763-20 Absolute Coolant Proof Digimatic Caliper

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 500-763-20 Absolute Coolant Proof Digimatic Caliper

Recommended Accessories

Mitutoyo 05CZA624 Digimatic Cable with Data Button IP Type, 1m-

Mitutoyo 05CZA624 Digimatic Cable with Data Button IP Type, 1m

05CZA624

Mitutoyo 05CZA625 SPC Digimatic Cable with Data Button IP Type, 80" (2m)-

Mitutoyo 05CZA625 SPC Digimatic Cable with Data Button IP Type, 80" (2m)

05CZA625

Mitutoyo 06AFM380A Connection Cable with Data Button USB-ITN-A-

Mitutoyo 06AFM380A Connection Cable with Data Button USB-ITN-A

USB-ITN-A

Mitutoyo 02AZD790A Waterproof U-Wave Connection Cable with Output Button, 16cm (6.3")-

Mitutoyo 02AZD790A Waterproof U-Wave Connection Cable with Output Button, 16cm (6.3")

02AZD790A

Mitutoyo 02AZE140A Foot Switch to Caliper to U-WAVE Connection Cable, T to A-

Mitutoyo 02AZE140A Foot Switch to Caliper to U-WAVE Connection Cable, T to A

02AZE140A

Mitutoyo 500-763-20 Offers

Features

  • Font height of 9mm for improved visibility
  • Easy to remove battery cap that doesn't require a screwdriver
  • Incredibly long battery life of 5 years due to low current integrated circuit
  • Easy to use with the advanced ergonomic design and only 1 button
  • Incorporates Mitutoyo's ABSOLUTE measurement system so there is no need to reset the origin
  • The automatic power-on/off function shuts down the LCD display after 20 minutes inactivity, but the ABS scale origin is unaffected
  • Power is restored to the display when the slider is moved
  • Stepped features can be measured
  • Can be integrated into statistical process control and measurement systems
  • An inspection certificate is supplied as standard (however, this cannot be used as a calibration certificate as it is undated)

Mitutoyo 500-763-20 Specifications

Range 0 to 8"
Accuracy (excluding quantizing error) ±.001" / ±0.02mm
Digital Step 0.01mm
Auto Power OFF After 20min of non-use
Max Response Speed Unlimited
Repeatability 0.01mm or 0.0005"/0.01mm
Battery Life Approx. 20000 hours (5 years) under normal use
Display LCD, Character Height 9mm
Power Supply SR44 (1 pc)
Weight 198g
Click here for complete specifications on the Mitutoyo 500-763-20

What's included with the Mitutoyo 500-763-20

  • 500-763-20 ABSOLUTE Coolant Proof Digimatic Caliper
  • Hard carrying case
  • Battery

How to Perform Maintenance on the Mitutoyo Digital Caliper


Learn how to properly care for your digital caliper by wiping it with a lint-free cloth and performing simple tests.

Click on a category to view a selection of compatible accessories with the Mitutoyo 500-763-20 Absolute Coolant Proof Digimatic Caliper, 0-8" (0-200mm), SPC Output.

Mitutoyo 05CZA624 Digimatic Cable with Data Button IP Type, 1m 05CZA624
This cable with a data out switch type, features a waterproof connection switch and a data capture button. For use with Coolant Proof Calipers and Coolant Proof Digimatic Scales.



Mitutoyo 05CZA625 SPC Digimatic Cable with Data Button IP Type, 80" (2m) 05CZA625
The Mitutoyo 05CZA625 Data Out Switch Type SPC Connecting Cable is applicable with Coolant Proof Caliper 500-68X,500-76X, 500-78X and Coolant Proof Digimatic scale units 572-61X.



Mitutoyo 02AZD790A Waterproof U-Wave Connection Cable with Output Button, 16cm (6.3") 02AZD790A
This cable connects a Digimatic Caliper to a U-Wave wireless link to a PC for storage, analysis and use in an SPC system. Measured values can be sent to the computer by pressing the Data Input Button. Cable has a length of 6.3" (16cm). For use with Mitutoyo Digimatic Calipers.



Mitutoyo 02AZE140A Foot Switch to Caliper to U-WAVE Connection Cable, T to A 02AZE140A
Enables a Digimatic Caliper not equipped with a data pushbutton to transmit measurement data over the U-WAVE wireless link to a PC for storage, analysis, and use in an SPC system.



Mitutoyo 06AFM380A Connection Cable with Data Button USB-ITN-A USB-ITN-A
This cable incorporates a data switch, so the tool is usable regardless of whether or not the measuring instrument has a switch. Is water-proof with switch.



Ask a question about Mitutoyo 500-763-20 Absolute Coolant Proof Digimatic Caliper, 0-8" (0-200mm), SPC Output

Customer Reviews for the Mitutoyo 500-763-20

Mitutoyo 500-763-20 Offers

Features

  • Font height of 9mm for improved visibility
  • Easy to remove battery cap that doesn't require a screwdriver
  • Incredibly long battery life of 5 years due to low current integrated circuit
  • Easy to use with the advanced ergonomic design and only 1 button
  • Incorporates Mitutoyo's ABSOLUTE measurement system so there is no need to reset the origin
  • The automatic power-on/off function shuts down the LCD display after 20 minutes inactivity, but the ABS scale origin is unaffected
  • Power is restored to the display when the slider is moved
  • Stepped features can be measured
  • Can be integrated into statistical process control and measurement systems
  • An inspection certificate is supplied as standard (however, this cannot be used as a calibration certificate as it is undated)
Show More...

Mitutoyo 500-763-20 Specifications

Range 0 to 8"
Accuracy (excluding quantizing error) ±.001" / ±0.02mm
Digital Step 0.01mm
Auto Power OFF After 20min of non-use
Max Response Speed Unlimited
Repeatability 0.01mm or 0.0005"/0.01mm
Battery Life Approx. 20000 hours (5 years) under normal use
Display LCD, Character Height 9mm
Power Supply SR44 (1 pc)
Weight 198g
Click here for complete specifications on the Mitutoyo 500-763-20

What's included with the Mitutoyo 500-763-20

  • 500-763-20 ABSOLUTE Coolant Proof Digimatic Caliper
  • Hard carrying case
  • Battery

How to Perform Maintenance on the Mitutoyo Digital Caliper


Learn how to properly care for your digital caliper by wiping it with a lint-free cloth and performing simple tests.

Click on a category to view a selection of compatible accessories with the Mitutoyo 500-763-20 Absolute Coolant Proof Digimatic Caliper, 0-8" (0-200mm), SPC Output.

Mitutoyo 05CZA624 Digimatic Cable with Data Button IP Type, 1m 05CZA624
This cable with a data out switch type, features a waterproof connection switch and a data capture button. For use with Coolant Proof Calipers and Coolant Proof Digimatic Scales.



Mitutoyo 05CZA625 SPC Digimatic Cable with Data Button IP Type, 80" (2m) 05CZA625
The Mitutoyo 05CZA625 Data Out Switch Type SPC Connecting Cable is applicable with Coolant Proof Caliper 500-68X,500-76X, 500-78X and Coolant Proof Digimatic scale units 572-61X.



Mitutoyo 02AZD790A Waterproof U-Wave Connection Cable with Output Button, 16cm (6.3") 02AZD790A
This cable connects a Digimatic Caliper to a U-Wave wireless link to a PC for storage, analysis and use in an SPC system. Measured values can be sent to the computer by pressing the Data Input Button. Cable has a length of 6.3" (16cm). For use with Mitutoyo Digimatic Calipers.



Mitutoyo 02AZE140A Foot Switch to Caliper to U-WAVE Connection Cable, T to A 02AZE140A
Enables a Digimatic Caliper not equipped with a data pushbutton to transmit measurement data over the U-WAVE wireless link to a PC for storage, analysis, and use in an SPC system.



Mitutoyo 06AFM380A Connection Cable with Data Button USB-ITN-A USB-ITN-A
This cable incorporates a data switch, so the tool is usable regardless of whether or not the measuring instrument has a switch. Is water-proof with switch.



Ask a question about Mitutoyo 500-763-20 Absolute Coolant Proof Digimatic Caliper, 0-8" (0-200mm), SPC Output

Customer Reviews for the Mitutoyo 500-763-20
