Mitutoyo 511-204-20 Series 511 Small Hole Bore Gauge, 10 to 18.5 mm, 0.01 mm

Model: 511-204-20

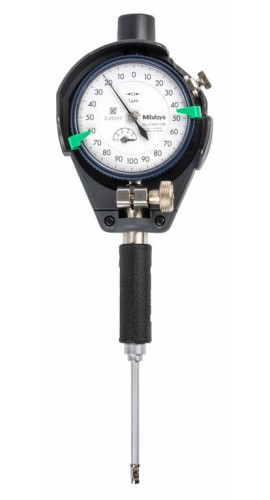

Mitutoyo 511-204-20 Series 511 Small Hole Bore Gauge, 10 to 18.5 mm, 0.01 mm-

More Mitutoyo Products

Ask an Expert

Mitutoyo 511-204-20 Series 511 Small Hole Bore Gauge, 10 to 18.5 mm, 0.01 mm

Model: 511-204-20

Measures inside bore diameters with an accuracy of up to ±5 µm, this bore gauge comes with nine interchangeable anvils to measure several different bore diameters with the same gauge. In addition, it features a range of 10 to 18.5 mm, and a two-point contact system that detects geometry anomalies such as ovalness and taper.

Measures inside bore diameters with an accuracy of up to ±5 µm, this bore gauge comes with nine interchangeable anvils to measure several different bore diameters with the same gauge. In addition, it features a range of 10 to 18.5 mm, and a two-point contact system that detects geometry anomalies such as ovalness and taper.

Sale Price $600.53 USD
Regular Price $765.00 USD
Availability 3 to 4 Weeks
Quantity

Mitutoyo 511-204-20 Offers

Bore gauge features

  • Large and innovative designed grips are easier to hold and reduce heat transfer from the operator for better accuracy
  • Fully protected by a rugged cover
  • Interchangeable anvils are constructed of alloy steel with carbide-tipped measuring faces for added accuracy and durability
  • A two-point contact system detects geometry anomalies such as ovalness and taper

Dial indicator features

  • Offered with flat back for mounting purposes
  • A revolutionary offset spindle bushing design provides trouble-free stem clamping and a longer clamping range
  • Rack gear is machine ground for tighter fit, increased accuracy
  • Greater rigidity in the bearing plate reduces retracing error by up to 20%
  • Four-screw mounting increases impact resistance for better, longer accuracy
  • No through screw hole on the frame provides better dust resistance
  • Contact point is carbide tipped for lasting accuracy, durability
  • Crystal is glare-free with a scratch-resistant coating
  • Manufactured to meet ISO/JIS standards

Applications

  • Aerospace
  • Automotive
  • Defense
  • Electronics
  • Energy
  • General manufacturing
  • Plastics and rubber

Mitutoyo 511-204-20 Specifications

Bore Gauge
Range 10 to 18.5 mm
Graduation 0.01 mm
Accuracy ±5 µm
Repeatability 2 µm
Stem Diameter 0.3" (8 mm)
Number of Spacers 1
Technology Mechanical
Units Metric
Dial Indicator
Range 0 to 10 mm
Graduation 0.01 mm
Accuracy ±0.013 mm
Range Revolution 1 mm
Dial Reading 0-100
Measuring Force 1.4 N or less
Back Type Flat back
Stem Diameter 0.3" (8 mm)
Standards Meets ISO/JIS
Technology Mechanical
Units Metric

What's included with the Mitutoyo 511-204-20

  • Bore Gauge
  • Dial Indicator
  • 9 x Anvils
  • Spacer

Ask a question about Mitutoyo 511-204-20 Series 511 Small Hole Bore Gauge, 10 to 18.5 mm, 0.01 mm
