Mitutoyo 568-929-10 Digital ABS Borematic with interchangeable head set, 0.5 to 1" / 12.7 to 25.4 mm

Model: 568-929-10

Mitutoyo 568-929-10 Digital ABS Borematic with interchangeable head set, 0.5 to 1" / 12.7 to 25.4 mm-

Downloads:

More Mitutoyo Products

Ask an Expert

Mitutoyo 568-929-10 Digital ABS Borematic with interchangeable head set, 0.5 to 1" / 12.7 to 25.4 mm

Model: 568-929-10

The digital ABS borematic with interchangeable head set takes measurements easily and quickly. It has titanium-coated measuring pins that give excellent durability and impact resistance. It also features a range of 0.5 to 1" / 12.7 to 25.4 mm and a 330° rotatable display unit for easy reading at any angle.

The digital ABS borematic with interchangeable head set takes measurements easily and quickly. It has titanium-coated measuring pins that give excellent durability and impact resistance. It also features a range of 0.5 to 1" / 12.7 to 25.4 mm and a 330° rotatable display unit for easy reading at any angle.

Your Price $3180.00 USD
Availability 2 to 3 Weeks
Quantity

Mitutoyo 568-929-10 Offers

The digital ABS borematic with interchangeable head set has GO/NG tolerance judgement function.

Features

  • TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole
  • Large LCD digits of 8.5 mm height for error-free reading
  • 330-degree rotatable display unit for easy reading at any angle
  • The ABSOLUTE linear encoder eliminates over-speed errors
  • With SPC data output
  • Setting rings for origin point setting are optional
  • Can measure deep holes by attaching an optional extension rod
  • Measurement can be taken closer to the bottom of a blind bore
  • Supplied in fitted wooden case

Mitutoyo 568-929-10 Specifications

Range 0.5 to 1" / 12.7 to 25.4 mm
Accuracy 0,5 to 0,8": ±0,00025", 0,8 to 1": ±0,0003" (excluding quantizing error)
Mass 690 g
Resolution 0.001 mm or 0.00005"/0.001 mm
Measuring Method Three-point method
Display LCD
Battery SR44 (1 pc.)
Battery Life Approx. 5,000 hours
Inch-Metric Inch/Metric
Click here for complete specifications on the Mitutoyo 568-929-10

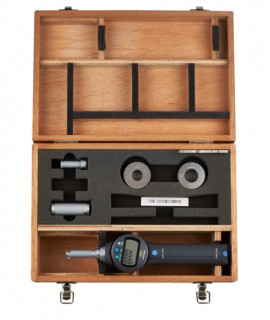

What's included with the Mitutoyo 568-929-10

  • Display Unit
  • Borematic Head Assembly, 0.5 to 0.65"
  • Borematic Head Assembly, 0.65 to 0.8"
  • Borematic Head Assembly, 0.8 to 1"
  • Setting Ring, 0.65"
  • Setting Ring, 0.8"
  • Battery
  • Key
  • Box
  • Certificate of Inspection

Ask a question about Mitutoyo 568-929-10 Digital ABS Borematic with interchangeable head set, 0.5 to 1" / 12.7 to 25.4 mm

Customer Reviews for the Mitutoyo 568-929-10

Mitutoyo 568-929-10 Offers

The digital ABS borematic with interchangeable head set has GO/NG tolerance judgement function.

Features

  • TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole
  • Large LCD digits of 8.5 mm height for error-free reading
  • 330-degree rotatable display unit for easy reading at any angle
  • The ABSOLUTE linear encoder eliminates over-speed errors
  • With SPC data output
  • Setting rings for origin point setting are optional
  • Can measure deep holes by attaching an optional extension rod
  • Measurement can be taken closer to the bottom of a blind bore
  • Supplied in fitted wooden case
Show More...

Mitutoyo 568-929-10 Specifications

Range 0.5 to 1" / 12.7 to 25.4 mm
Accuracy 0,5 to 0,8": ±0,00025", 0,8 to 1": ±0,0003" (excluding quantizing error)
Mass 690 g
Resolution 0.001 mm or 0.00005"/0.001 mm
Measuring Method Three-point method
Display LCD
Battery SR44 (1 pc.)
Battery Life Approx. 5,000 hours
Inch-Metric Inch/Metric
Click here for complete specifications on the Mitutoyo 568-929-10

What's included with the Mitutoyo 568-929-10

  • Display Unit
  • Borematic Head Assembly, 0.5 to 0.65"
  • Borematic Head Assembly, 0.65 to 0.8"
  • Borematic Head Assembly, 0.8 to 1"
  • Setting Ring, 0.65"
  • Setting Ring, 0.8"
  • Battery
  • Key
  • Box
  • Certificate of Inspection

Ask a question about Mitutoyo 568-929-10 Digital ABS Borematic with interchangeable head set, 0.5 to 1" / 12.7 to 25.4 mm

Customer Reviews for the Mitutoyo 568-929-10
