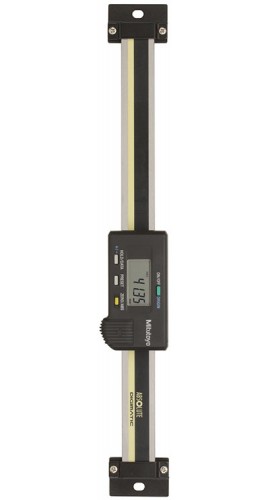

Mitutoyo 572-475 Offers

The Mitutoyo SD-E Digimatic scale facilitates mounting on jigs, tools and small machine tools to enable accurate positioning. A built-in ABSOLUTE scale is also included, using the Mitutoyo ABS point, which doesn’t require zero-set when powered on. In addition, overspeed errors have been eliminated which improves reliability.

Features

• ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements
• The ZERO/ABS key allows the display to be zero-set at any slider position along the beam for incremental comparison measurements. This key will also allow return to the absolute coordinate with a display of the true position from the origin point
• No rack, no pinion, no glass scale: Digimatic Scale Unit is safely embedded in the hardened stainless steel blade
• Horizontal display according to the scale mounting direction
• Special type that is provided with diameter displaying function is available for lathes
• All units come with two mounting brackets, each located at either end of the scale
• With SPC data output
• Long battery life for easier maintenance
• Equipped with an output port to transfer measurement data to implement in control and gaging systems
• EC counters are available as external display units

Applications

• Precision positioning and presetting
