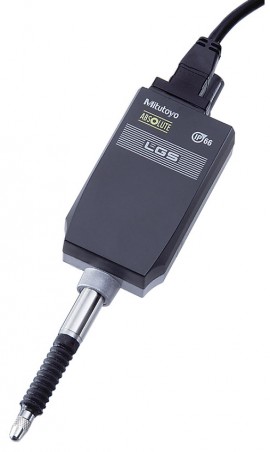

Ideal for installations in automation applications, machines, and the factory floor, this general-purpose linear gauge features an inch/metric measuring range of 0.5"/12.5 mm. In addition, this linear gauge offers the ability to maintain the reference point even when the power is off.
Ideal for installations in automation applications, machines, and the factory floor, this general-purpose linear gauge features an inch/metric measuring range of 0.5"/12.5 mm. In addition, this linear gauge offers the ability to maintain the reference point even when the power is off.
Features
Applications
| Measuring Range | 0.5"/12.5 mm |
| Accuracy | 0.0008" |
| Resolution | 0.0005"/0.01 mm |
| Maximum Measuring Force | Upward: 1.6 N Horizontal: 1.8 N Downward: 2 N |
| Maximum Response Speed | Unlimited |
| Output | Digimatic |
| Position Detection Method | Absolute electrostatic capacitance linear encoder |
| Bearing Type | Slide bearing |
| Connection | Standard 10-pin Digimatic connector |
| Connecting Cable | 6.56' (2 m) |
| Environmental Conditions | Operating temperature range: 32 to 104°F (0 to 40°C) Storage temperature range: 14 to 140°F (-10 to 60°C) Humidity range: 20 to 80% RH, non-condensing IP rating: IP66 |
| Stem Diameter | 0.375" (9.53 mm) |
| Weight | 6.7 oz (190 g) |
