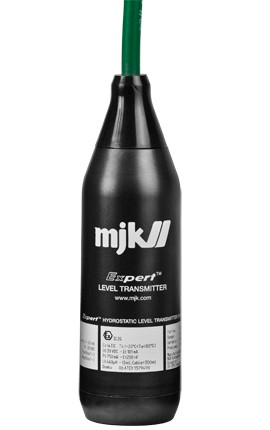

Cast in a housing of PPS protecting it against acid, bases, or iron chloride, the hydrostatic level transmitter is ideal for installations with aggressive chemicals and liquids. It is robustly built without sharp edges to prevent particles, textiles, and paper scraps from sticking to it itself or the membrane. It is also ATEX and UL approved for hazardous areas.
Cast in a housing of PPS protecting it against acid, bases, or iron chloride, the hydrostatic level transmitter is ideal for installations with aggressive chemicals and liquids. It is robustly built without sharp edges to prevent particles, textiles, and paper scraps from sticking to it itself or the membrane. It is also ATEX and UL approved for hazardous areas.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
The hydrostatic level transmitter is precise, very stable and suitable for even harsh environments.
Features
Applications
| Nominal Measuring Range | 0 to 32.8084' (0 to 10 m) |
| Measuring Principle | Ceramic capacitive, relative pressure |
| Temperature Range | -5 to 105°F |
| Temp. Deviation, Zero Point | Better than ± 0.01 % /°F |
| Temperature Deviation, FS | Better than ± 0.05 % /°F |
| Linearity/Stability | Better than ± 0.5 % FS / ± 0.5 % FS |
| Measurement Accuracy | Better than ± 0.1 % FS @ 50 to 85°F Better than ± 0.2 % FS @ full temperature range |
| Long Time Stability | Better than ± 0.1 % FS per year |
| Materials | Housing: PPS (Ryton), Diaphragm: 99,9 % Al2O3 Packing: Viton |
| Supply Voltage | 10 to 30 V DC |
| Output Signal | 2-wire 4 to 20 mA (passive transmitter) |
| Cable | 2 × AWG 20 (pressure) + 5 x AWG 25 (data), shielded, PUR insulation |
| Cable Length | 39' |
| Enclosure | NEMA 6P, withstands a static pressure equal to max. overpressure |
| Safety Approvals | UL Class I, II and II, Division 1 Hazardous (Classified) Locations, UL 913 ATEX: II 2G EEx ia IIC T4...T6 |
| Test Approvals | CE directive: 89/336/EEC, 2004/108/EC, 1999/EC EN 61326-1, 61326-2-3, EN 55011, 61000-4-2, 61000-4-3, 61000-4-4, 61000-4-5,61000-4-6, 61000-4-8 EN 61000-6-4 2007-02-19, EN 61000-6-2 2005-09-08, |
