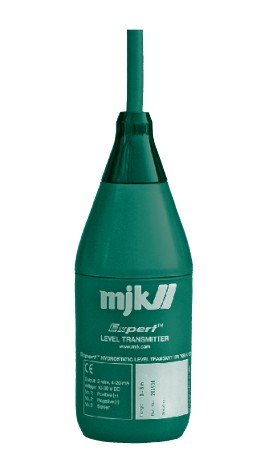

Robust and useful all-around, the hydrostatic level transmitter is equipped with a piezoresistive measuring system with high precision and direct air pressure compensation through a vent tube in the cable. It is ideal for measuring levels in storage tanks, wet wells, and pump stations in both water and wastewater plants.
Robust and useful all-around, the hydrostatic level transmitter is equipped with a piezoresistive measuring system with high precision and direct air pressure compensation through a vent tube in the cable. It is ideal for measuring levels in storage tanks, wet wells, and pump stations in both water and wastewater plants.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
The hydrostatic level transmitter is submersible.
Features
Applications
| Nominal Measuring Range | 0 to 100' |
| Measuring Principle | Piezoresistive |
| Min. Programmable Range | 0 to 30' |
| Max. Programmable Range | 0 to 200' |
| Non-Standard Range | Min. 0 to 6'. / Max. 0 to 900' |
| Max. Overpressure | 10 bar/150 psi |
| Temperature Range | -15 to 150°F |
| Temp. Deviation, Zero Point | Better than ± 0.01 % /°F |
| Temperature Deviation, Full Range | Better than ± 0.008 % /°F |
| Linearity/Stability | Better than ± 0.5 % FS / ± 0.1 % FS |
| Measurement Accuracy | Better than ± 0.25 % FS @ 50 to 85°F Better than ± 0.5 % FS @ full temperature range |
| Long Time Stability | Better than ± 0.5 % FS per year |
| Materials | Housing: PP / Diaphragm: Stainless steel (AISI 316 L) |
| Supply Voltage | 10 to 30 V DC |
| Output Signal | 2-wire 4 to 20 mA (passive transmitter) |
| Cable | 2 × AWG 20 (pressure) + 5 x AWG 25 (data), shielded, PUR insulation |
| Cable Length | 100' |
| Enclosure | NEMA 6P, withstands a static pressure equal to max. overpressure |
| Test Approvals | EN61000-6-3/-4:2001, EN61000-6-1/-2:1999 |
| Nominal Measuring Range | 0 to 100' |
| Measuring Principle | Piezoresistive |
| Min. Programmable Range | 0 to 30' |
| Max. Programmable Range | 0 to 200' |
| Non-Standard Range | Min. 0 to 6'. / Max. 0 to 900' |
| Max. Overpressure | 10 bar/150 psi |
| Temperature Range | -15 to 150°F |
| Temp. Deviation, Zero Point | Better than ± 0.01 % /°F |
| Temperature Deviation, Full Range | Better than ± 0.008 % /°F |
| Linearity/Stability | Better than ± 0.5 % FS / ± 0.1 % FS |
| Measurement Accuracy | Better than ± 0.25 % FS @ 50 to 85°F Better than ± 0.5 % FS @ full temperature range |
| Long Time Stability | Better than ± 0.5 % FS per year |
| Materials | Housing: PP / Diaphragm: Stainless steel (AISI 316 L) |
| Supply Voltage | 10 to 30 V DC |
| Output Signal | 2-wire 4 to 20 mA (passive transmitter) |
| Cable | 2 × AWG 20 (pressure) + 5 x AWG 25 (data), shielded, PUR insulation |
| Cable Length | 100' |
| Enclosure | NEMA 6P, withstands a static pressure equal to max. overpressure |
| Test Approvals | EN61000-6-3/-4:2001, EN61000-6-1/-2:1999 |
