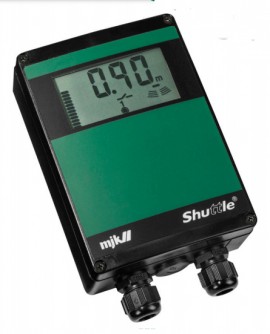

Designed to measure water levels as well as other fluids and contaminated or aggressive media, the ultrasonic level transmitter has an intelligent and very precise measuring system. It provides simple and logical operations using advanced technology.
Designed to measure water levels as well as other fluids and contaminated or aggressive media, the ultrasonic level transmitter has an intelligent and very precise measuring system. It provides simple and logical operations using advanced technology.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
The ultrasonic level transmitter has 4 to 20 mA output with zero and span adjustment.
Features
Applications
| Range | 0 to 35', 0 to 45', 0 to 75' |
| Span | From 0 to 4" to 0 to 75' |
| Power supply | 115 V AC ± 10 % |
| Consumption | Approx. 2 W |
| Temperature | -5 to 150°F |
| Input | From ultrasonic sensor |
| Accuracy | ± 0.2 % |
| Outputs | Analog: 4 to 20 mA, max. load 500 Ω. Digital: 2 x relays with programmable NO/NC function. Max. 1 A resistive load @ 50 V. |
| Indication | LCD display with four digits and symbols |
| Operation | Function keypad behind front pane |
| Enclosure | NEMA 4X |
| Approvals | CE: EN 50081-1, EN 50082-1 UL: File E194021 |
| Range | 0 to 35', 0 to 45', 0 to 75' |
| Span | From 0 to 4" to 0 to 75' |
| Power supply | 115 V AC ± 10 % |
| Consumption | Approx. 2 W |
| Temperature | -5 to 150°F |
| Input | From ultrasonic sensor |
| Accuracy | ± 0.2 % |
| Outputs | Analog: 4 to 20 mA, max. load 500 Ω. Digital: 2 x relays with programmable NO/NC function. Max. 1 A resistive load @ 50 V. |
| Indication | LCD display with four digits and symbols |
| Operation | Function keypad behind front pane |
| Enclosure | NEMA 4X |
| Approvals | CE: EN 50081-1, EN 50082-1 UL: File E194021 |
