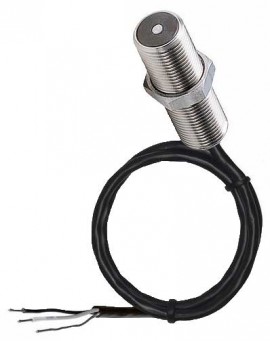

A self-powered gear sensor and is very popular magnetic sensor commonly used with 60 tooth 20 pitch gears.
A self-powered gear sensor and is very popular magnetic sensor commonly used with 60 tooth 20 pitch gears.
| Operating Distance | 0.005" (0.127 mm) gap for target 0.1" (2.5 mm) minimum |
| Speed Range | 1-99,999 RPM |
| Operating Temperature | -100° to 250°F (- 73° to 120°C) |
| Power Required | Self Generating |
| Output Signal | 190V P-P |
| Standard Cable | 10 feet (3.04 m) |
| Dimensions | 2.0" (L) x 0.625" (50 x 16 mm) |
