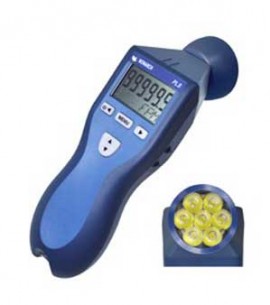

This is a compact, rugged, light weight device that provides a super bright, uniform light output for performing visual diagnostic inspection and RPM measurements with silent cool running LED’s that are extremely energy efficient providing up to 5 hours of operation on a single charge.
This is a compact, rugged, light weight device that provides a super bright, uniform light output for performing visual diagnostic inspection and RPM measurements with silent cool running LED’s that are extremely energy efficient providing up to 5 hours of operation on a single charge.
Features
| Display | LCD display with 6 numeric 0.506 inch (12.85mm) high digits and 5 alphanumeric 0.282inch (7.11mm) high digits |
| Indicators | Battery level, On Target, Select, TACH, and EXT icons |
| Memory | Last setting before power down is remembered and restored on next power up. 5 user settable memory locations |
| Operating Temp | 32 to 104°F (0 to 40°C) |
| Humidity | Maximum relative humidity 80% for temperature up to 88°F (31°C) decreasing linearly to 50% RH at 104°F (40°C) |
| Input Power | 3.6Vdc Internal Li-Ion rechargeable batteries |
| Light Output | Average: 1800 Lumens at 6000 FPM 8" from lens |
| Color Temp | 5600°K |
| Run Time | 5 hours typical at 6000 FPM, and 2.8° pulse width with fully charged batteries |
| Charge Time | 4 to 5 hours typical with supplied charger |
| Weight | With batteries: 0.6lbs (0.27kg) |
| Dimensions | 7.75 x 2.75 x 2.3" (197 x 70 x 58mm) |
| Display | LCD display with 6 numeric 0.506 inch (12.85mm) high digits and 5 alphanumeric 0.282inch (7.11mm) high digits |
| Indicators | Battery level, On Target, Select, TACH, and EXT icons |
| Memory | Last setting before power down is remembered and restored on next power up. 5 user settable memory locations |
| Operating Temp | 32 to 104°F (0 to 40°C) |
| Humidity | Maximum relative humidity 80% for temperature up to 88°F (31°C) decreasing linearly to 50% RH at 104°F (40°C) |
| Input Power | 3.6Vdc Internal Li-Ion rechargeable batteries |
| Light Output | Average: 1800 Lumens at 6000 FPM 8" from lens |
| Color Temp | 5600°K |
| Run Time | 5 hours typical at 6000 FPM, and 2.8° pulse width with fully charged batteries |
| Charge Time | 4 to 5 hours typical with supplied charger |
| Weight | With batteries: 0.6lbs (0.27kg) |
| Dimensions | 7.75 x 2.75 x 2.3" (197 x 70 x 58mm) |
