This dual stroboscope/tachometer uses super bright LEDs to take accurate measurements. The splash-resistant enclosure and ergonomic construction allow for reliable use.
This dual stroboscope/tachometer uses super bright LEDs to take accurate measurements. The splash-resistant enclosure and ergonomic construction allow for reliable use.

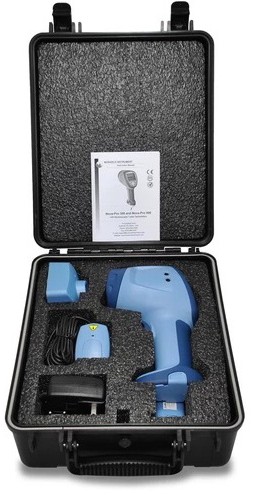

The Monarch 6248-011 Nova-Pro UV365 Ultraviolet LED Stroboscope/Tachometer Kit is designed for a variety of visual inspections, including security printing marks, invisible ink bars, textiles and OAA coatings. With the help of super bright ultraviolet LEDs and 4 different operating modes, this tachometer makes taking measurements easy. The handheld strobe also boasts durable ABS construction and an ergonomic design for 1-handed operation.
Features
| Flash Range (FPM/RPM) | 30 to 999,999 |
| Display | 6-digit numeric and 5-digit alphanumeric backlit LCD |
| Accuracy/Resolution | 0.001% of setting |
| Flash Duration | Adjustable to 14°/2 ms max |
| Output | 365 nm UVA light |
| Light Source | 12 high-output LEDs |
| Tachometer Mode | 0 to 999,999 rpm with integral laser or external input |
| Programmable Memory | Yes (10 set points) |
| Internal Phase Shift | Yes |
| Phase Delay | -360 to 345° |
| Time Delay | -50 to 50 ms |
| Virtual RPM (Slow Motion) | -60 to 60 vrpm |
| Power Supply | Rechargeable battery (2 included) |
| Operating Time | 9.5 hours typical |
| Product Length | 9.5" (241 mm) |
| Product Width | 3.75" (95 mm) |
| Product Height | 5.5" (140 mm) |
| Product Weight | 1.4 lbs (635 g) |
| Flash Range (FPM/RPM) | 30 to 999,999 |
| Display | 6-digit numeric and 5-digit alphanumeric backlit LCD |
| Accuracy/Resolution | 0.001% of setting |
| Flash Duration | Adjustable to 14°/2 ms max |
| Output | 365 nm UVA light |
| Light Source | 12 high-output LEDs |
| Tachometer Mode | 0 to 999,999 rpm with integral laser or external input |
| Programmable Memory | Yes (10 set points) |
| Internal Phase Shift | Yes |
| Phase Delay | -360 to 345° |
| Time Delay | -50 to 50 ms |
| Virtual RPM (Slow Motion) | -60 to 60 vrpm |
| Power Supply | Rechargeable battery (2 included) |
| Operating Time | 9.5 hours typical |
| Product Length | 9.5" (241 mm) |
| Product Width | 3.75" (95 mm) |
| Product Height | 5.5" (140 mm) |
| Product Weight | 1.4 lbs (635 g) |
