Monarch Nova-Pro® 500 Kit LED Stroboscope/Tachometer Kit with li-ion battery, includes Traceable Certificate

Model: Nova-Pro 500 Kit | Order No: 6245-011

A built-in laser module allows the unit to go into tachometer or strober trigger mode. With additional features including phase delay, time delay and virtual slow motion.

A built-in laser module allows the unit to go into tachometer or strober trigger mode. With additional features including phase delay, time delay and virtual slow motion.

Regular Price $1347.50 USD
Availability 1 Week
Quantity

Recommended Accessories

Monarch 6281-020 Laser Module-

Monarch 6281-020 Laser Module

6281-020

Monarch 6180-070 Reflective tape-

Monarch 6180-070 Reflective tape

6180-070

Monarch 6281-021 Laser Module Dock-

Monarch 6281-021 Laser Module Dock

6281-021

Monarch 6281-031 Deluxe Nova-Pro Case-

Monarch 6281-031 Deluxe Nova-Pro Case

6281-031

Monarch Nova-Pro 500 Kit Offers

Features

  • Super bright LED's
  • Integral/removable laser module
  • Splash resistant IP54 enclosure
  • 1/4" x 20 tripod mount
  • Ergonomic one handed operation
  • Reflective LCD Display

Benefits of LED's

  • Energy efficient with long battery life (9-18 hours typical)
  • Extremely bright, uniform light output
  • Completely silent
  • Cool operation
  • No lamp replacements
  • Extremely high flash rates (up to 999,999 FPM)

Applications

  • Visual running inspections of: Fan blades, motors, shafts, gears, rollers, webs, belts, sheaves, chains, sprockets and much more without having to shut down your process
  • Diagnose alignment issues
  • Determine speed of rotating equipment using strobe or built in laser tachometer
  • Troubleshoot high speed automation processes by placing them in virtual slow motion
  • Print quality inspection
  • Textile processing inspection
  • Phase reference balancing

Monarch Nova-Pro 500 Kit Specifications

Flash Range (FPM/RPM) 60 To 999,999
Display 6 Digit Numeric And 5 Digit Alphanumeric LCD With Touch Keypad. High Contrast Blue Background/White Characters With Back Light
Accuracy/Resolution 0.001% Of Setting Or ±1 Lsd/6 Digits To 0.001
Light Source 12 High Output LED Array
Flash Duration Adjustable To 14 Degrees/3000µsecs Max
Light Output 5500 Lux @ 6000 FPM, 12 Inches (20cm), 2° Duty Cycle, Max Light Output: 30,000 Lux
Color Temperature Approximately 6200°K
Tachometer Mode 0-999,999 RPM With Integral Laser Or External Input
Programmable Memory Yes (10 Set Points)
Weight 1.4 Lbs (635 Grams)
Size (H X W X D) 9.5 X 3.75 X 5.5 In. (241 X 95 X 140mm)
Housing Material/Rating ABS/IP54
Click here for complete specifications on the Monarch Nova-Pro 500 Kit

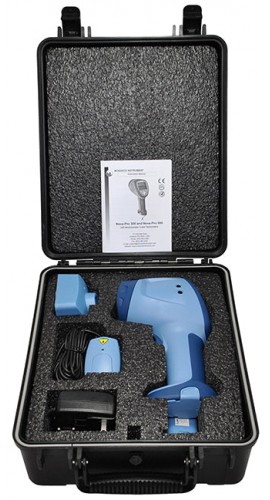

What's included with the Monarch Nova-Pro 500 Kit

  • Nova-Pro 500 strobe
  • Traceable Certificate with Full Data and Uncertainties
  • Integral laser module with remote dock
  • Standard Li-ion battery packs (2)
  • Battery charging station with interchangeable wall plugs
  • Deluxe water tight latching carry case
  • Operation manual

Click on a category to view a selection of compatible accessories with the Monarch Nova-Pro® 500 Kit LED Stroboscope/Tachometer Kit with li-ion battery, includes Traceable Certificate.

Monarch 6281-020 Laser Module 6281-020
For use with the Nova-Pro 100, 300 and 500.



Monarch 6281-021 Laser Module Dock 6281-021
Includes an 8 foot cable, 1/8" phone plug connector and a blank panel for use in strobe. To be used with the Nova-Pro laser module.



Monarch 6281-030 Standard Nova-Pro Case 6281-030
Plastic latching carry case, die cut foam lined. For use with the Nova-Pro Series.



Monarch 6281-031 Deluxe Nova-Pro Case 6281-031
Deluxe water tight, die cut foam lined carry case with o-ring gasket. For use with the Nova-Pro Series.



Monarch 6180-069 Reflective tape, 2 pack 6180-069
A 5 foot roll and is 0.5 inch wide. For use with the Nova-Pro Series.



Monarch 6180-070 Reflective tape 6180-070
A 5 foot roll and is 0.5 inch wide. For use with the Nova-Pro Series.



Monarch 6281-010 Standard Li-ion Removable/Rechargeable Battery Pack 6281-010
For use with the Nova-Pro Series.



Monarch 6281-012 Battery Charging Station for Nova-Pro battery packs 6281-012
Designed for the Nova Pro Battery packs (sold separately). This charging station includes a 115/230 V AC wall adapter with USA, UK, AUS and Euro adapter plugs.



Monarch 6281-015 AC Power Adapter 6281-015
Includes 115/230 Vac wall adapter with USA, UK, AUS and Euro adapter plugs. For use with the Nova-Pro Series.
