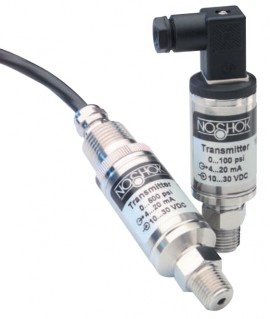

Suitable for many applications, this pressure transmitter is CE-compliant to suppress RFI, EMI, and ESD. In addition, this transmitter features a pressure range of 0 to 15 psig and a ±0.5% accuracy.
Suitable for many applications, this pressure transmitter is CE-compliant to suppress RFI, EMI, and ESD. In addition, this transmitter features a pressure range of 0 to 15 psig and a ±0.5% accuracy.
Features
Applications
| Output Signal | 4 to 20 mA, 2-wire |
| Pressure Range | 0 to 15 psig |
| Accuracy | ±0.5% full scale (BFSL) |
| Stability | ≤ ±0.2% full scale for one year, non-accumulating |
| Adjustment | ≤ ±10% full scale for zero and span |
| Response Time | ≤1 ms (between 10 and 90% full scale) |
| Service Life | >100,000,000 load cycles |
| Temperature Ranges | Compensated: 32 to 176°F (0 to 80°C) Effect: ±0.017% full scale/°F for zero and span Media: -22 to 212°F (-30 to 100°C) Ambient: -40 to 185°F (-40 to 85°C) Storage: -40 to 212°F (-40 to 100°C) |
| Power Requirement | 10 to 30 V DC (4 to 20 mA, 2-wire) |
| Load Limitations | ≤(Vpower supply -10)/0.020 A |
| Pressure | Proof: 3 times full scale for ranges 0 to 5 psi through 0 to 200 psi 1.75 times full scale for ranges 0 to 300 psi through 0 to 10,000 psi 1.5 times full scale for 0 to 15,000 psi Burst: 3.8 times full scale for ranges 0 to 5 psi through 0 to 200 psi 4 times full scale for ranges 0 to 300 psi through 0 to 10,000 psi 3 times full scale for 0 to 15,000 psi |
| Mesuring Element | 316 stainless steel for vacuum through 300 psi; 17-4PH stainless steel for ≥500 psi |
| Material | Housing: 316 stainless steel Connection: 316 stainless steel |
| Environmental Rating | IP65 |
| Electromagnetic Rating | CE compliant to EMC norm EN 61326:2014/A1:1998 RFI, EMI and ESD protection |
| Shock | 1000 g according to IEC 60068-2-27 |
| Vibration | 20 g according to IEC 60068-2-6 |
| Dimensions | 1.38 x 4.09" (35.05 x 103.89 mm) |
| Weight | 0.22 lbs (0.1 kg) |
| Output Signal | 4 to 20 mA, 2-wire |
| Pressure Range | 0 to 15 psig |
| Accuracy | ±0.5% full scale (BFSL) |
| Stability | ≤ ±0.2% full scale for one year, non-accumulating |
| Adjustment | ≤ ±10% full scale for zero and span |
| Response Time | ≤1 ms (between 10 and 90% full scale) |
| Service Life | >100,000,000 load cycles |
| Temperature Ranges | Compensated: 32 to 176°F (0 to 80°C) Effect: ±0.017% full scale/°F for zero and span Media: -22 to 212°F (-30 to 100°C) Ambient: -40 to 185°F (-40 to 85°C) Storage: -40 to 212°F (-40 to 100°C) |
| Power Requirement | 10 to 30 V DC (4 to 20 mA, 2-wire) |
| Load Limitations | ≤(Vpower supply -10)/0.020 A |
| Pressure | Proof: 3 times full scale for ranges 0 to 5 psi through 0 to 200 psi 1.75 times full scale for ranges 0 to 300 psi through 0 to 10,000 psi 1.5 times full scale for 0 to 15,000 psi Burst: 3.8 times full scale for ranges 0 to 5 psi through 0 to 200 psi 4 times full scale for ranges 0 to 300 psi through 0 to 10,000 psi 3 times full scale for 0 to 15,000 psi |
| Mesuring Element | 316 stainless steel for vacuum through 300 psi; 17-4PH stainless steel for ≥500 psi |
| Material | Housing: 316 stainless steel Connection: 316 stainless steel |
| Environmental Rating | IP65 |
| Electromagnetic Rating | CE compliant to EMC norm EN 61326:2014/A1:1998 RFI, EMI and ESD protection |
| Shock | 1000 g according to IEC 60068-2-27 |
| Vibration | 20 g according to IEC 60068-2-6 |
| Dimensions | 1.38 x 4.09" (35.05 x 103.89 mm) |
| Weight | 0.22 lbs (0.1 kg) |
