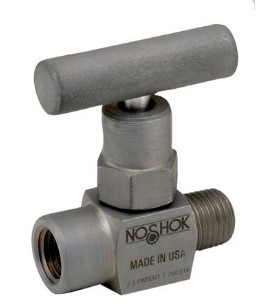

NOSHOK 152-FFC Mini Soft Tip Needle Valve with ¼" NPT, female to female, steel

Model: 152-FFC

Compact size and built for maximum durability and robust performance, the mini soft tip needle valve comes with a ¼ " NPT. Made with 316 stainless steel, the valve features a female-to-female connection and is made of zinc-nickel-plated steel.

Compact size and built for maximum durability and robust performance, the mini soft tip needle valve comes with a ¼ " NPT. Made with 316 stainless steel, the valve features a female-to-female connection and is made of zinc-nickel-plated steel.

Sale Price $29.43 USD
Regular Price $49.05 USD
Availability 2 to 3 Weeks
Quantity

NOSHOK 152-FFC Offers

The mini soft tip needle valve has an orifice size of 0.172".

Features

  • 100% helium leak tested to 1 x 10-4 ml/s for performance and reliability
  • Soft tip valves feature a patented acetal non-rotating soft tip stem, and a back-up metal-to-metal seal
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
  • All stem threads are rolled for strength and ease of operation
  • Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve

NOSHOK 152-FFC Specifications

Material Zinc-nickel plated steel
Connection ¼" NPT, female to female
Pressure Rating 6000 psi at 200°F (93°C)
Orifice Size 0.172"
Flow Coefficient CV 0.42
Stem Seal and Type All 316 stainless steel stems with FKM o-ring and PTFE back-up ring below the threads
Weight Approximately 0.5 lbs
Click here for complete specifications on the NOSHOK 152-FFC

What's included with the NOSHOK 152-FFC

  • NOSHOK 152-FFC Mini Soft Tip Needle Valve with ¼" NPT, female to female, steel

Ask a question about NOSHOK 152-FFC Mini Soft Tip Needle Valve with ¼" NPT, female to female, steel

Customer Reviews for the NOSHOK 152-FFC

NOSHOK 152-FFC Offers

The mini soft tip needle valve has an orifice size of 0.172".

Features

  • 100% helium leak tested to 1 x 10-4 ml/s for performance and reliability
  • Soft tip valves feature a patented acetal non-rotating soft tip stem, and a back-up metal-to-metal seal
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling
  • All stem threads are rolled for strength and ease of operation
  • Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve
Show More...

NOSHOK 152-FFC Specifications

Material Zinc-nickel plated steel
Connection ¼" NPT, female to female
Pressure Rating 6000 psi at 200°F (93°C)
Orifice Size 0.172"
Flow Coefficient CV 0.42
Stem Seal and Type All 316 stainless steel stems with FKM o-ring and PTFE back-up ring below the threads
Weight Approximately 0.5 lbs
Click here for complete specifications on the NOSHOK 152-FFC

What's included with the NOSHOK 152-FFC

  • NOSHOK 152-FFC Mini Soft Tip Needle Valve with ¼" NPT, female to female, steel

Ask a question about NOSHOK 152-FFC Mini Soft Tip Needle Valve with ¼" NPT, female to female, steel

Customer Reviews for the NOSHOK 152-FFC
